To make sure this part does fit your vehicle Check The Fit

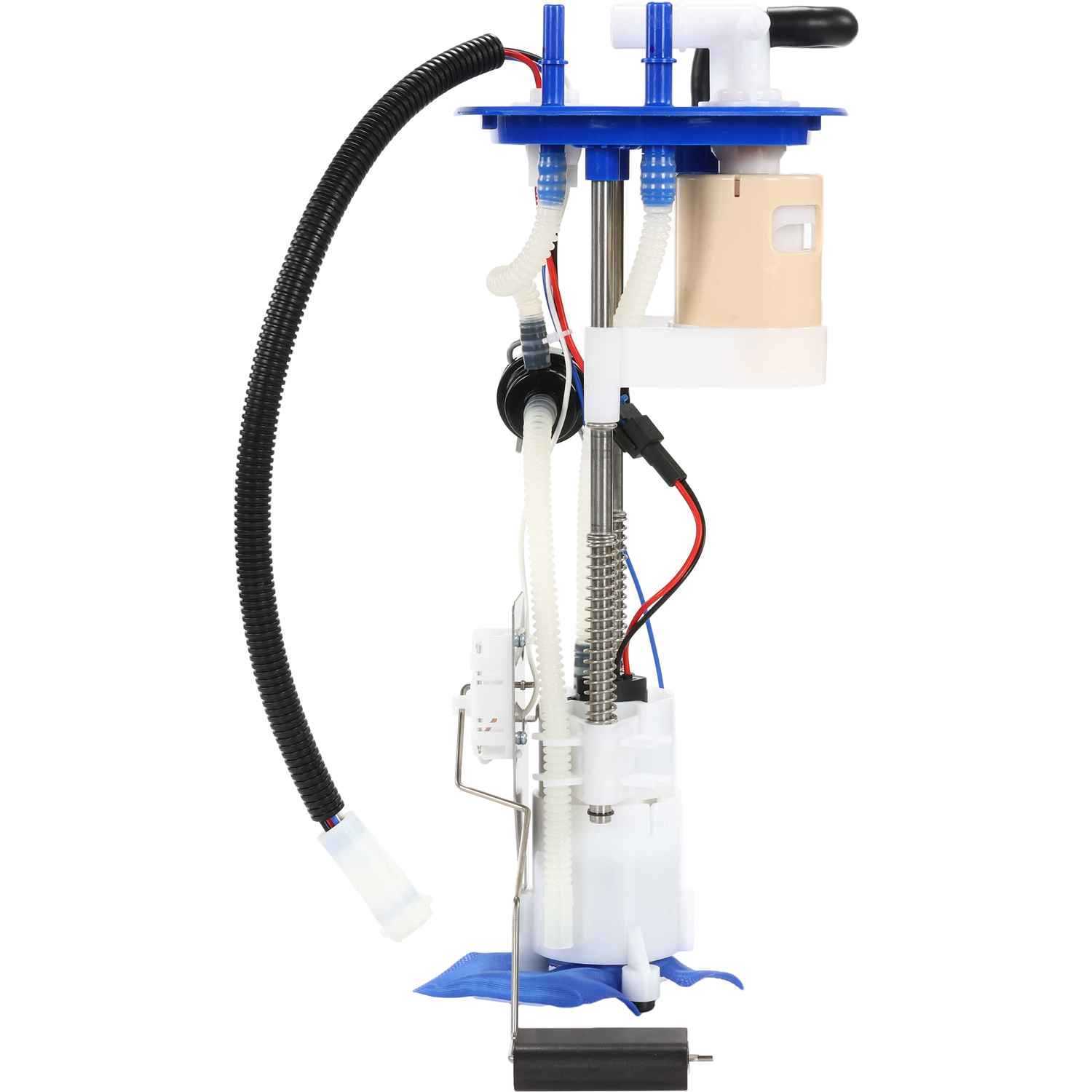

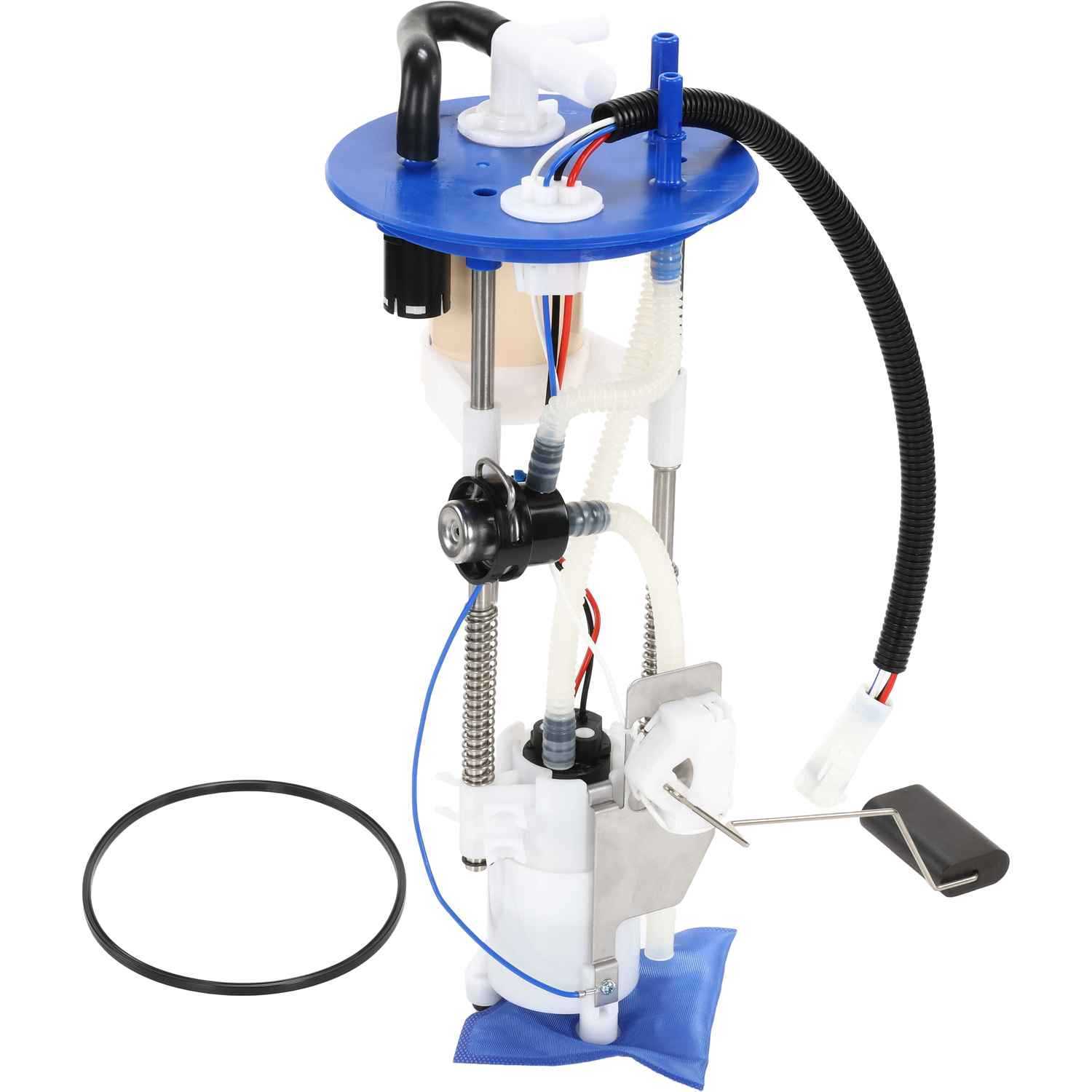

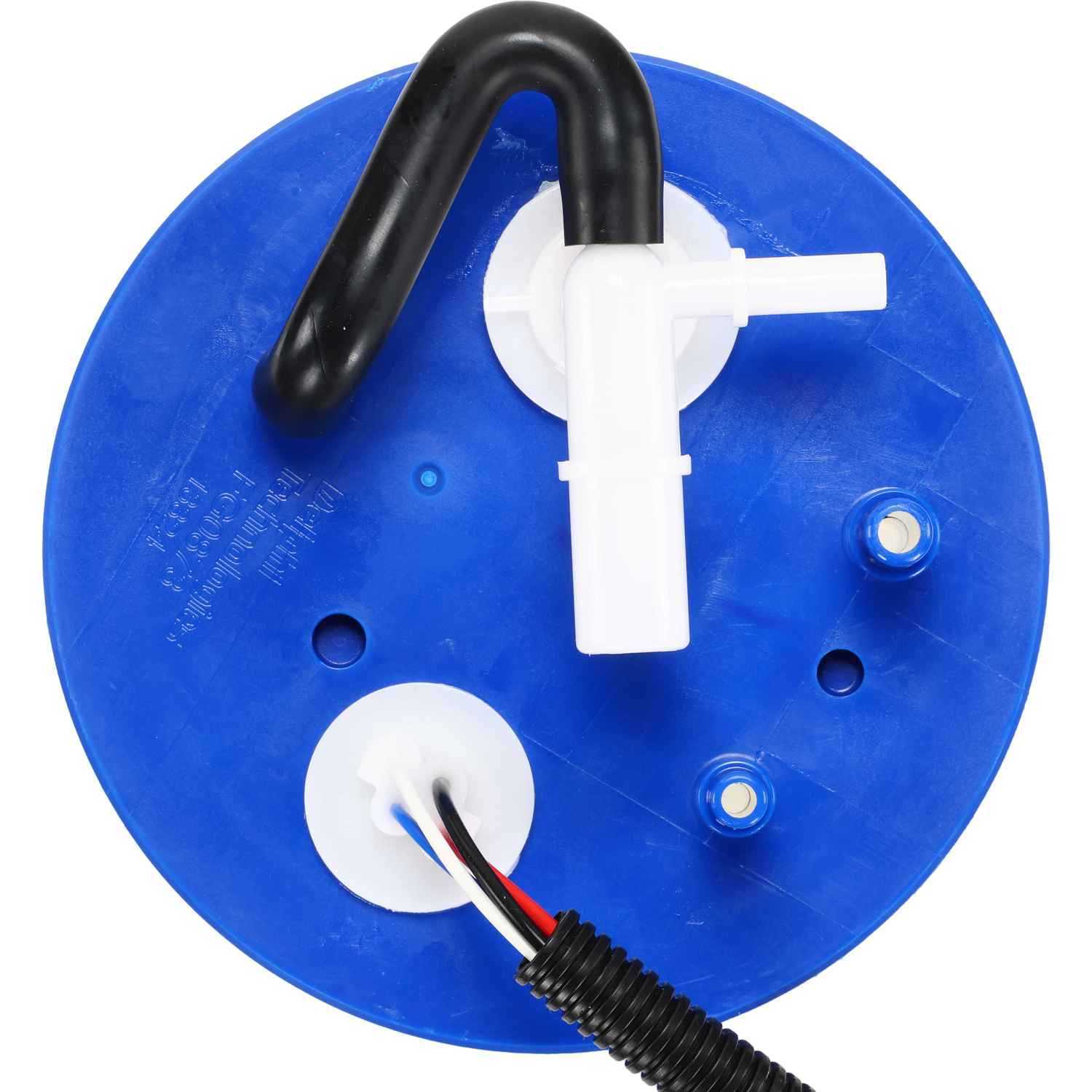

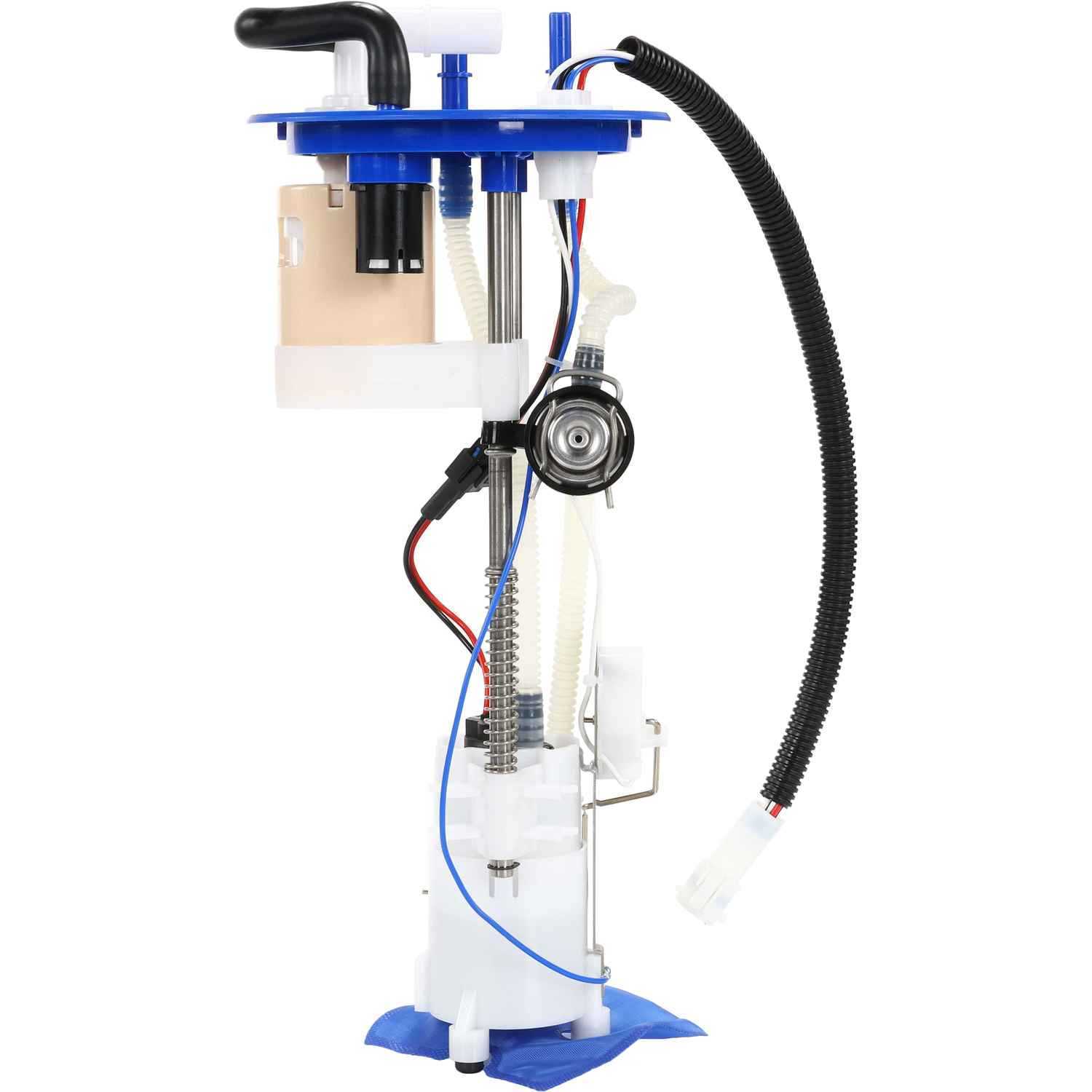

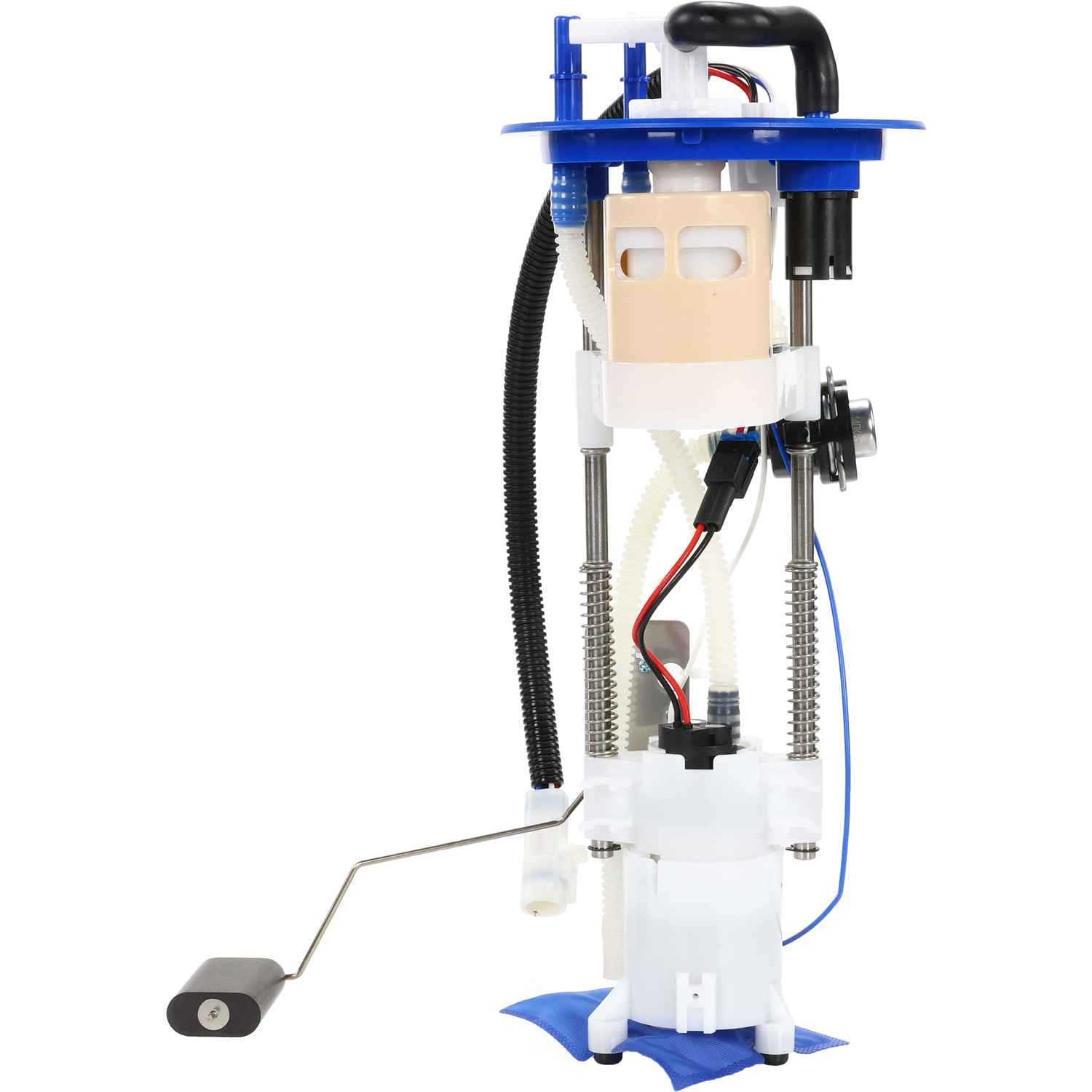

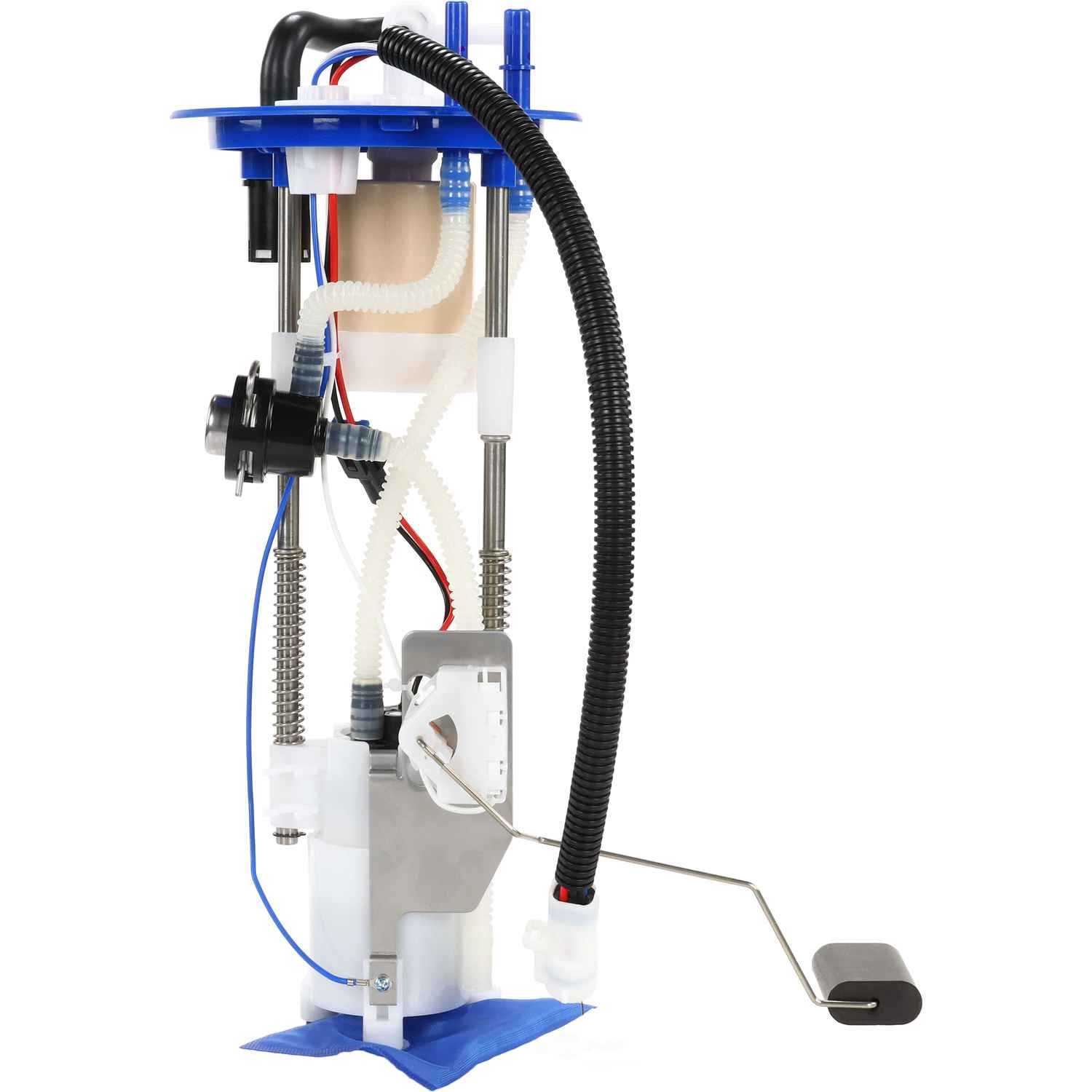

Fuel Pump Module Assembly - Delphi - Fuel Pump Module Assembly (Part Number: FG0873)
- CTO: CN
- Emission Code: 1
- Harmonized Tariff Code (Schedule B): 8413309000
- Harmonized Tariff Code (HTS): 8413309030
- Life Cycle Status Code: 4
- Life Cycle Status Description: Announced
- SDR Required Flag: N
- National Popularity Description: Top 60% of Product Group Sales Value (Units x $, Hits, etc.)
- NPS: A
- Maximum Cases per Pallet Layer: 12
- Pallet Layer Maximum: 5
- PRC: NEW
- Taxable: N
- Warranty Special: Limited Lifetime
- Warranty Special UOM: LF
- AAIA Part Type Description: Fuel Pump Module Assembly
- Label Description: Fuel Pump Module Assembly
- Marketing Description: Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.
- Short Product Description: F/Pmp Module
- Average Current Draw: 7 68
- Average Flow Rating: 34 GPH
- California Proposition 65: WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Flex
- Gasket Or Seal Included: Yes
- In Tank or External: In Tank

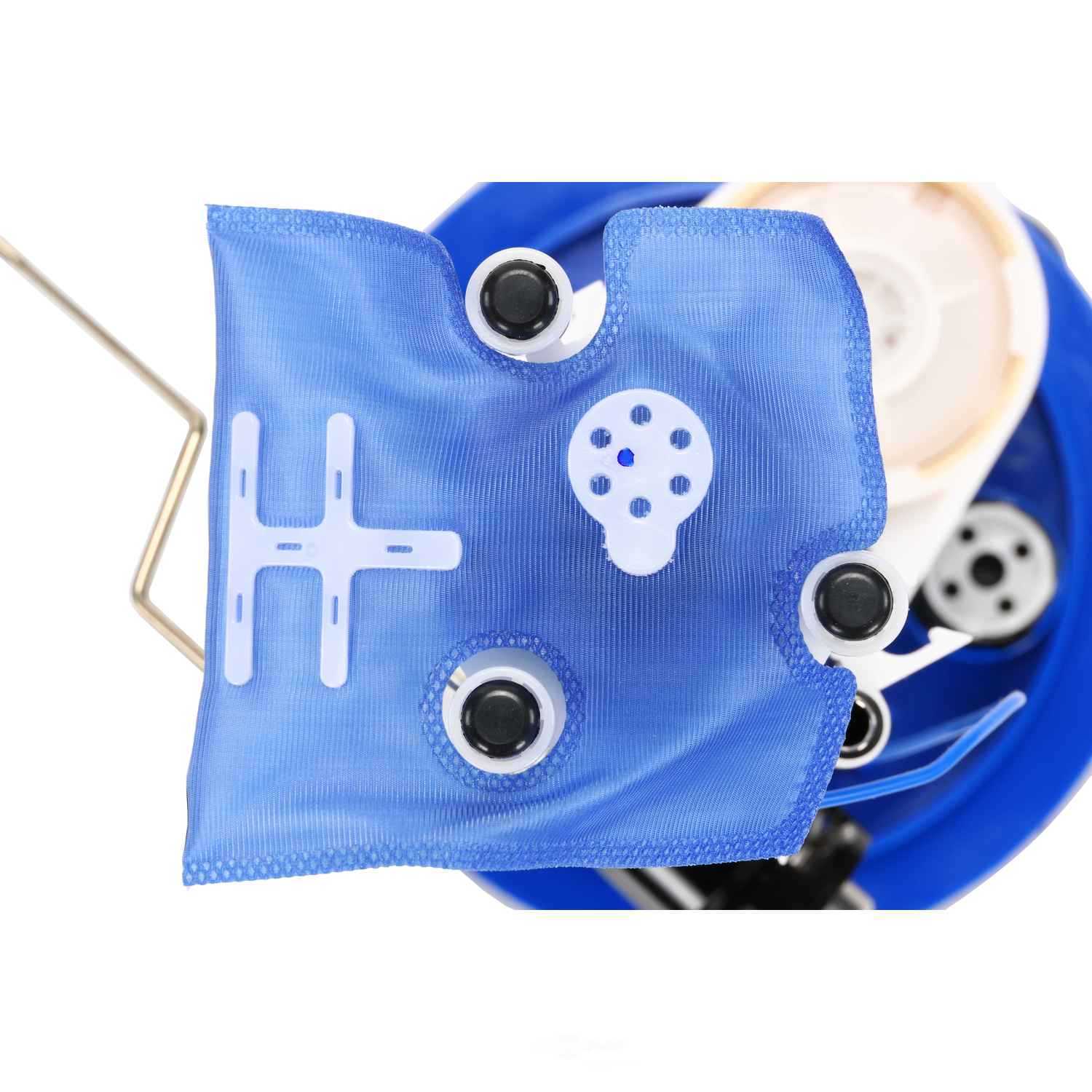

- Inlet Type: Strainer
- Internal Or External Strainer: External
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 65.0 PS
- Outlet Outside Diameter: 0.375 IN
- Outlet Quantity: 4
- Outlet Type: Quick Connect
- Package Contents: Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 16.0 82
- Resistance Ohms Full: 160.0 82
- Strainer Included: Yes
- System Pressure: 44 psi

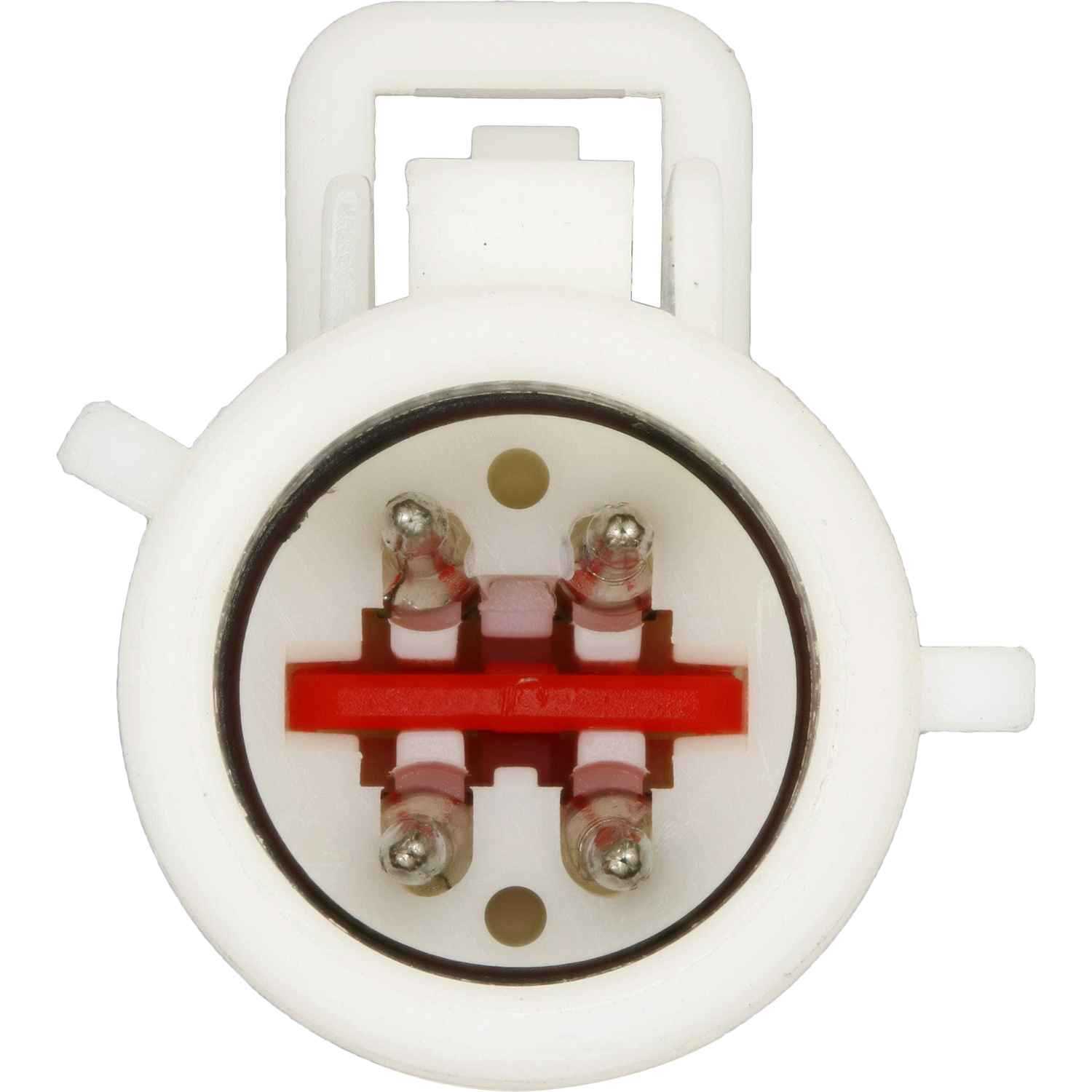

- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Pin
- Vapor Pressure Sensor: No
- Voltage: 12.0 2H
- Manufacturer:
- Delphi
- Part Number:
- FG0873
- Manufacturer Part Number:
- FG0873
- Description:
- Fuel Pump Module Assembly
- Long Description:
- Fuel Pump Module Assembly
- Part Type:
- Fuel Pump Module Assembly
- Category:
- Air And Fuel Delivery
- Subcategory:
- Fuel Pumps And Related Components
- Warehouse Notes:
- FUEL MODULE - FP MODULE ASSEMBLY
- Sales Rank:
Product Details
- Condition:
- New
- Product Fit:
- Direct Fit
- Weight:
- 2.75 lbs.
- Height:
- 8.5"
- Width:
- 8.8"
- Length:
- 8.8"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 1
- Minimum Order Qty:
- 1
- Item GTIN:
- 689604204184
Technical Details
- CTO
- CN
- Emission Code
- 1
- Harmonized Tariff Code (Schedule B)
- 8413309000
- Harmonized Tariff Code (HTS)
- 8413309030
- Life Cycle Status Code
- 4
- Life Cycle Status Description
- Announced
- SDR Required Flag
- N
- National Popularity Description
- Top 60% of Product Group Sales Value (Units x $, Hits, etc.)
- NPS
- A
- Maximum Cases per Pallet Layer
- 12
- Pallet Layer Maximum
- 5
- PRC
- NEW
- Taxable
- N
- Warranty Special
- Limited Lifetime
- Warranty Special UOM
- LF
- AAIA Part Type Description
- Fuel Pump Module Assembly
- Label Description
- Fuel Pump Module Assembly
- Marketing Description
- Delphi Technologies is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi Technologies is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.
- Short Product Description
- F/Pmp Module
- Average Current Draw
- 7 68
- Average Flow Rating
- 34 GPH
- California Proposition 65
- WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Fuel Level Sender Assembly Included
- Yes
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Internal Or External Strainer
- External
- Item Grade
- Standard Replacement
- Lock Ring Included
- No
- Maximum Pressure
- 65.0 PS
- Outlet Outside Diameter
- 0.375 IN
- Outlet Quantity
- 4
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty
- 16.0 82
- Resistance Ohms Full
- 160.0 82
- Strainer Included
- Yes
- System Pressure
- 44 psi
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Pin
- Vapor Pressure Sensor
- No
- Voltage
- 12.0 2H
Specifications
The DELPHI Fuel Pump Module Assembly contains no remanufactured components, and is designed to operate in either city or highway driving.
This part fits at least: 1 vehicles
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2001 | Mazda | B2300 | 2.3L | [Fuel Pump Module Assembly] Quantity needed per vehicle: 1 |
