To make sure this part does fit your vehicle Check The Fit
Air Suspension Strut - Arnott Air Suspension - New Rear Air Strut (Part Number: AS-2856)
- CTO: US
- Emission Code: 1
- Harmonized Tariff Code (Schedule B): 8708800050
- Harmonized Tariff Code (HTS): 8708801600
- Life Cycle Status Code: 2
- SDR Required Flag: N
- Maximum Cases per Pallet Layer: 10
- Pallet Layer Maximum: 10
- PRC: NEW
- Taxable: Y
- Warranty Special: 2 Year
- Warranty Special UOM: TX
- AAIA Part Type Description: Air Suspension Strut

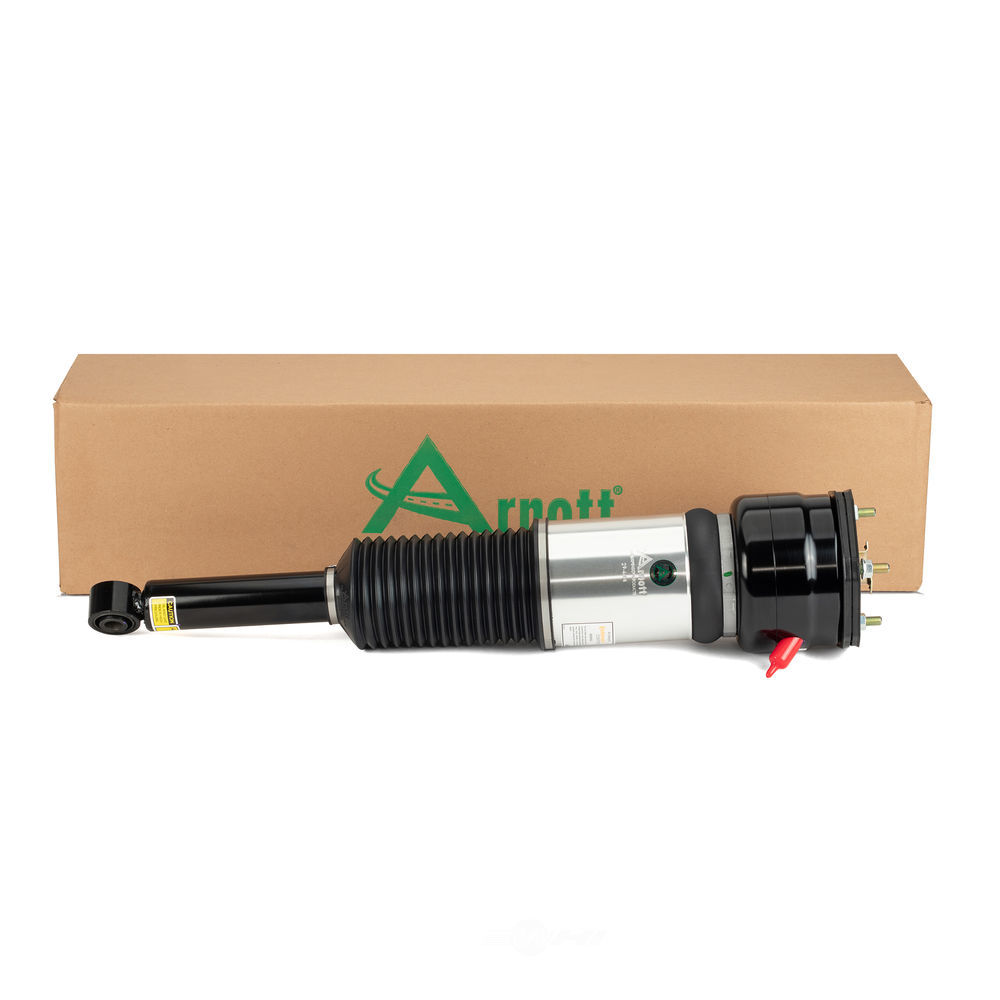

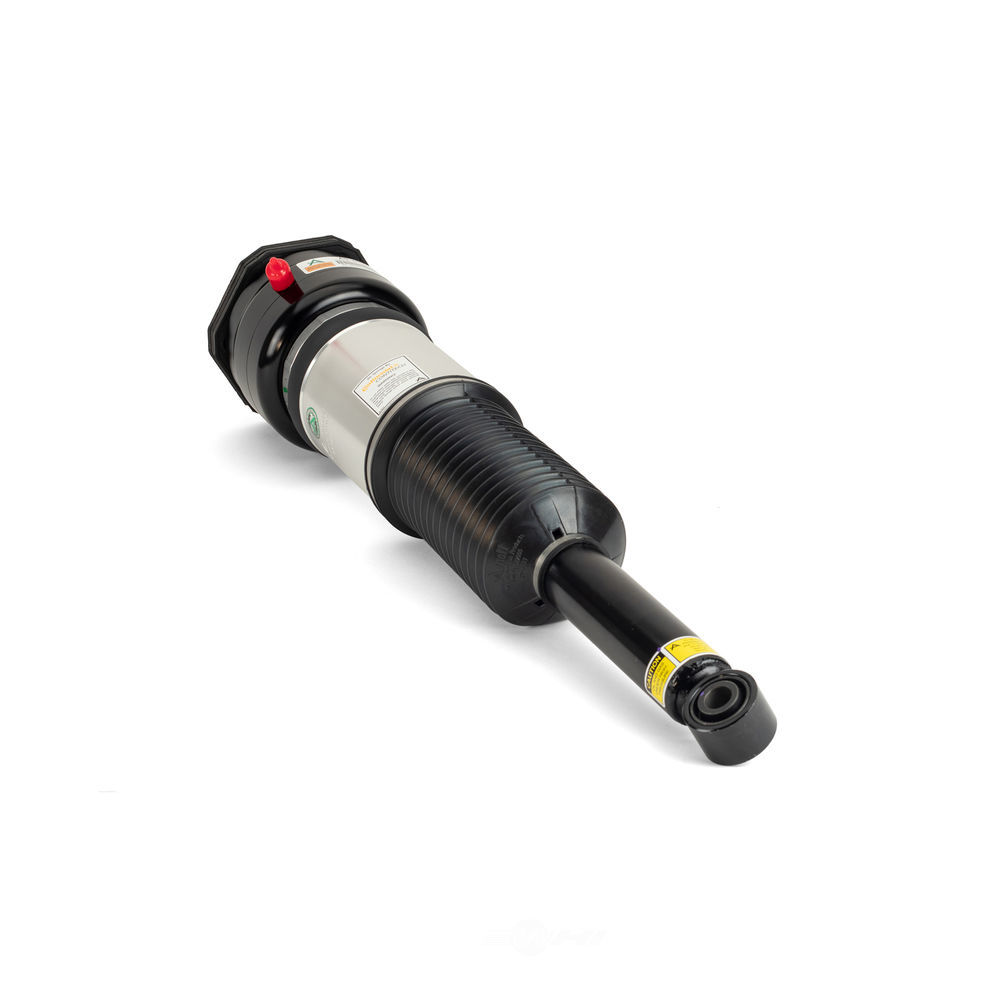

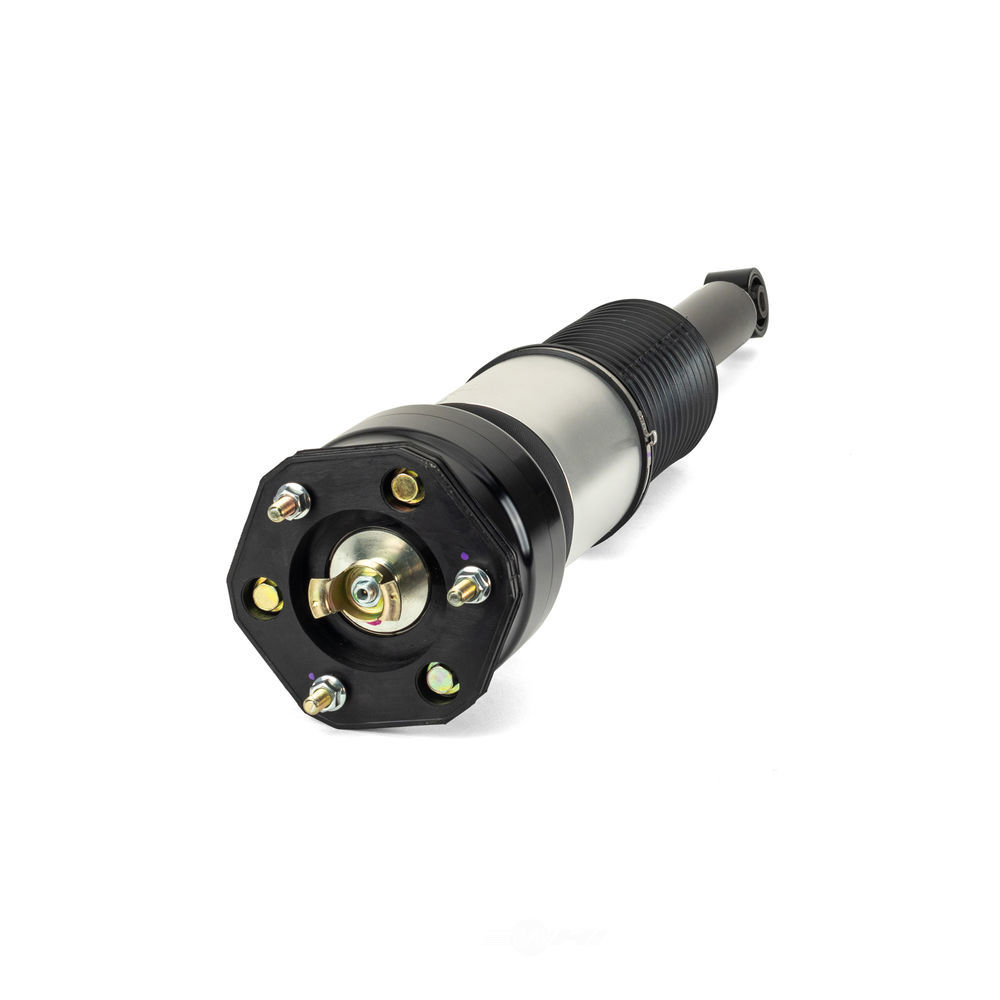

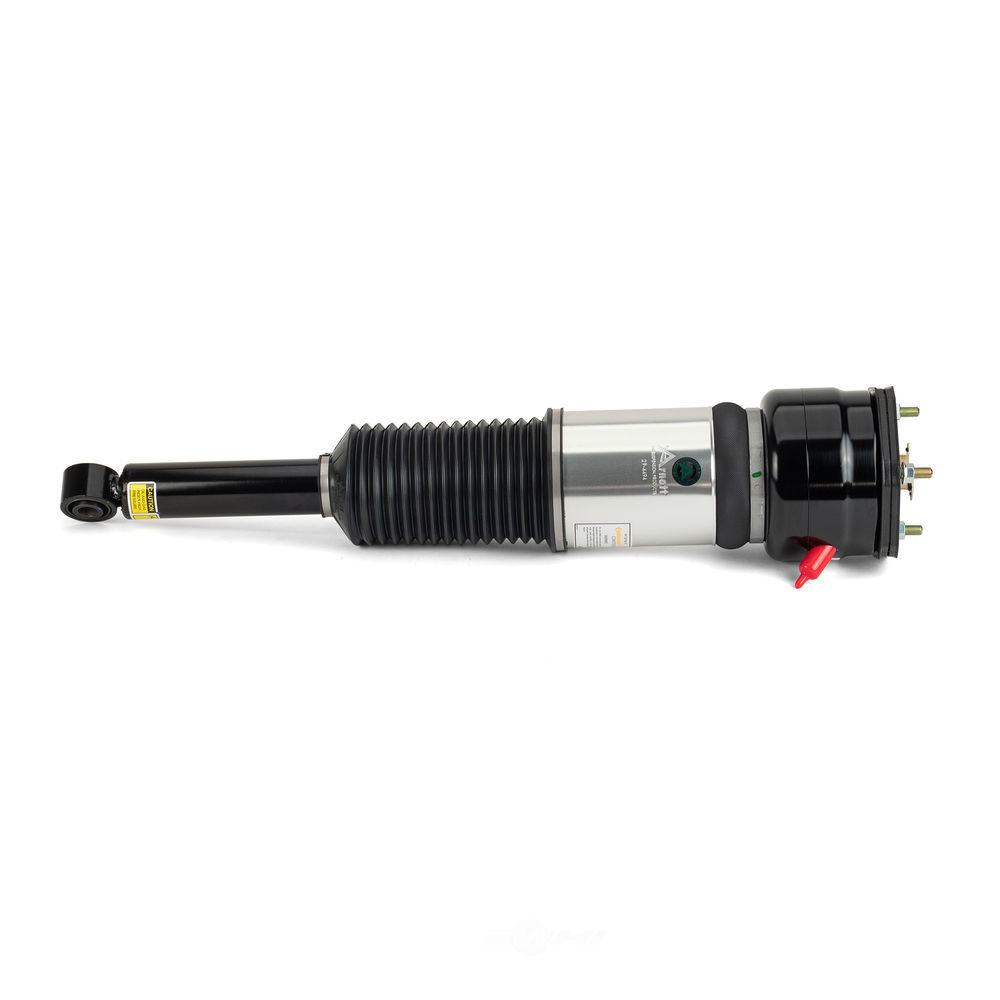

- Marketing Description: AS-2856 is an Arnott engineered aftermarket air suspension strut for the rear right or left-hand side of the 2007-2012 Lexus LS 460/08-12 LS 600h L with Adaptive Variable Suspension (AVS). This new assembly replaces the O.E. strut and features a new, not remanufactured, custom-tuned shock absorber. The Arnott strut features a new heavy-duty air bladder from ContiTech which is protected by an aluminum can along with a CNC-machined top mount and sealing cap made from aircraft-quality aluminum. This new air strut is assembled in the USA with Arnott's long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, new air fitting and a dust boot to protect the shock.
- Short Product Description: Air Strut
- Adjustable: No
- Air Adjustable: Yes
- Air Bladder: Yes
- Air Bladder Material: Yes
- Air Ride Suspension: Yes
- Bearing Plate Included: Yes
- Body End Measuring Point: Center Eye
- Boot Color: Black
- Boot/dust Shield Included: Yes
- California Proposition 65: N/A
- Coil Over Springs Included: N/A
- Compressed Length: 444 MM
- Contents: Air Shock Assembly Mounting Hardware
- Dust Shield Material: N/A
- Extended Length: 639 MM
- Heavy Duty Crimping Rings: Yes
- Internal Construction Type: Twin-tube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Loop/Eyelet
- Mounting Hardware Included: Yes
- Progressive Spring Rate: Yes
- Protective Aluminum Can: Yes
- Shock Absorber Rod End Measuring Point: Shoulder of Stud
- Shock Spring Assisted: Yes
- Shock/strut Design: Twin-tube
- Spring Isolators Included: Yes
- Spring Rate Type: Progressive
- Spring Seat Included: Yes
- Springs Included: N/A
- Travel Length: 195 MM
- Upper Mount Type: Stud
- Manufacturer:
- Arnott Air Suspension
- Part Number:
- AS-2856
- Manufacturer Part Number:
- AS-2856
- Description:
- Air Suspension Strut
- Long Description:
- New Rear Air Strut
- Part Type:
- Air Suspension Strut
- Category:
- Suspension
- Subcategory:
- Shocks And Struts
- Warehouse Notes:
- NEW REAR AIR STRUT - SUSPENSION AIR STRUT
- Sales Rank:
Product Details
- Condition:
- New
- Product Fit:
- Direct Fit
- Weight:
- 20.2 lbs.
- Height:
- 7.38"
- Width:
- 7.38"
- Length:
- 7.38"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 2
- Minimum Order Qty:
- 1
- Item GTIN:
- 815710014489
- Position:
- Rear
Technical Details
- CTO
- US
- Emission Code
- 1
- Harmonized Tariff Code (Schedule B)
- 8708800050
- Harmonized Tariff Code (HTS)
- 8708801600
- Life Cycle Status Code
- 2
- SDR Required Flag
- N
- Maximum Cases per Pallet Layer
- 10
- Pallet Layer Maximum
- 10
- PRC
- NEW
- Taxable
- Y
- Warranty Special
- 2 Year
- Warranty Special UOM
- TX
- AAIA Part Type Description
- Air Suspension Strut
- Marketing Description
- AS-2856 is an Arnott engineered aftermarket air suspension strut for the rear right or left-hand side of the 2007-2012 Lexus LS 460/08-12 LS 600h L with Adaptive Variable Suspension (AVS). This new assembly replaces the O.E. strut and features a new, not remanufactured, custom-tuned shock absorber. The Arnott strut features a new heavy-duty air bladder from ContiTech which is protected by an aluminum can along with a CNC-machined top mount and sealing cap made from aircraft-quality aluminum. This new air strut is assembled in the USA with Arnott's long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, new air fitting and a dust boot to protect the shock.
- Short Product Description
- Air Strut
- Adjustable
- No
- Air Adjustable
- Yes
- Air Bladder
- Yes
- Air Bladder Material
- Yes
- Air Ride Suspension
- Yes
- Bearing Plate Included
- Yes
- Body End Measuring Point
- Center Eye
- Boot Color
- Black
- Boot/dust Shield Included
- Yes
- California Proposition 65
- N/A
- Coil Over Springs Included
- N/A
- Compressed Length
- 444 MM
- Contents
- Air Shock Assembly Mounting Hardware
- Dust Shield Material
- N/A
- Extended Length
- 639 MM
- Heavy Duty Crimping Rings
- Yes
- Internal Construction Type
- Twin-tube
- Internal Damper Type
- Hydraulic
- Lower Mount Type
- Loop/Eyelet
- Mounting Hardware Included
- Yes
- Progressive Spring Rate
- Yes
- Protective Aluminum Can
- Yes
- Shock Absorber Rod End Measuring Point
- Shoulder of Stud
- Shock Spring Assisted
- Yes
- Shock/strut Design
- Twin-tube
- Spring Isolators Included
- Yes
- Spring Rate Type
- Progressive
- Spring Seat Included
- Yes
- Springs Included
- N/A
- Travel Length
- 195 MM
- Upper Mount Type
- Stud
Specifications
The ARNOTT AIR SUSPENSION Air Suspension Strut contains no remanufactured components, and is designed to operate in either city or highway driving.
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2009 | Lexus | LS600h | 5.0L | [NEW] Rear; Quantity needed per vehicle: 2 |
