To make sure this part does fit your vehicle Check The Fit

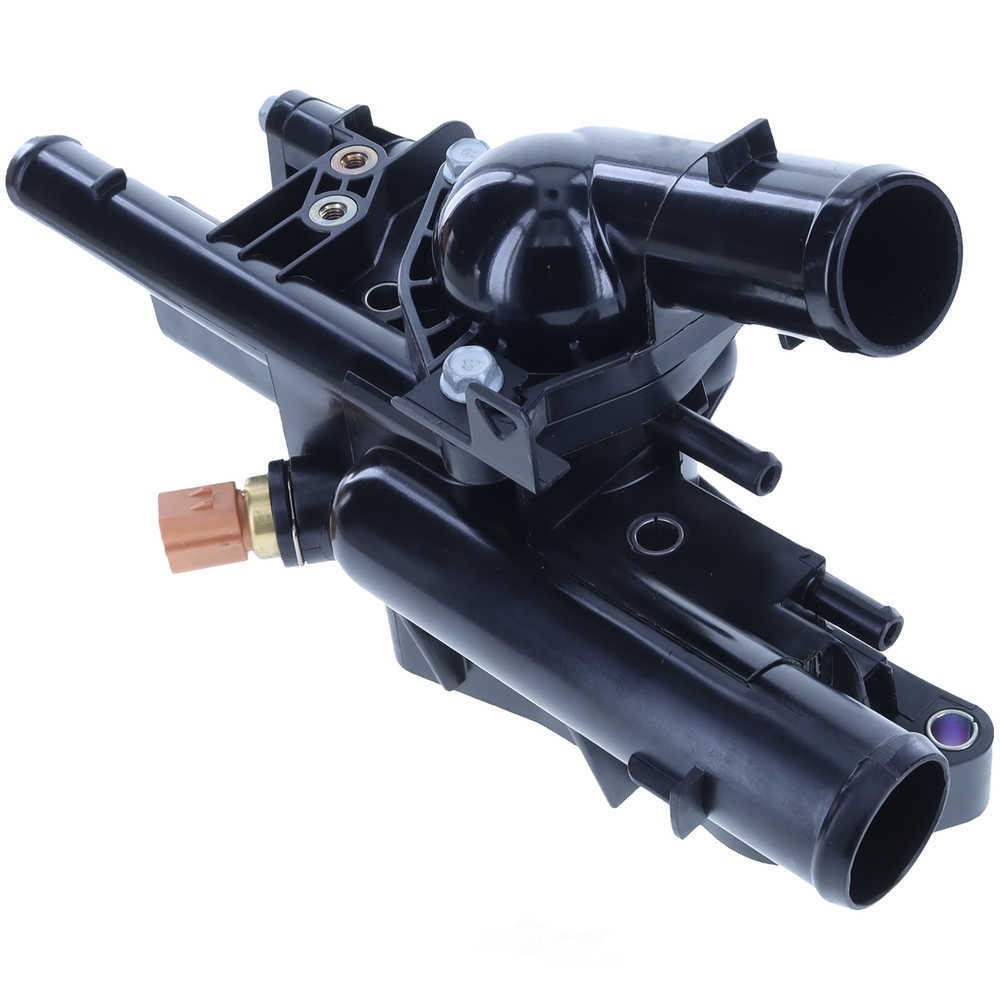

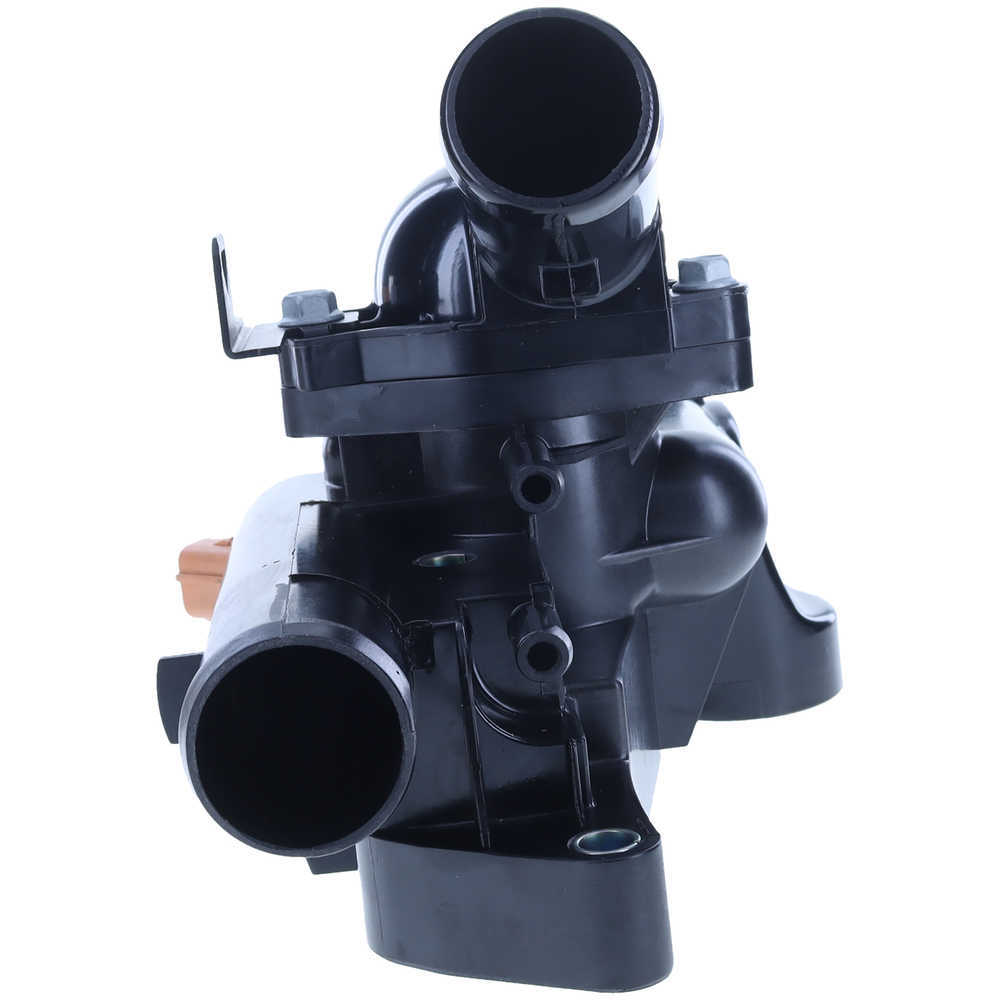

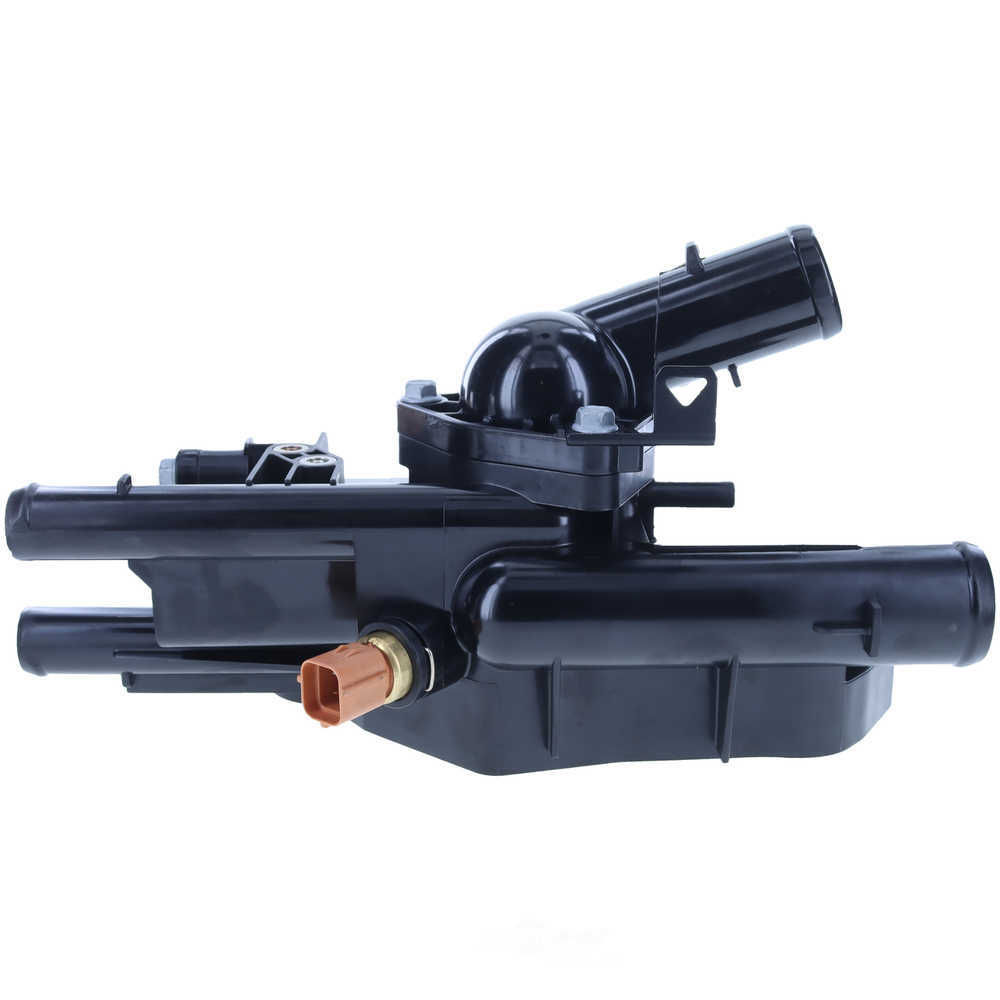

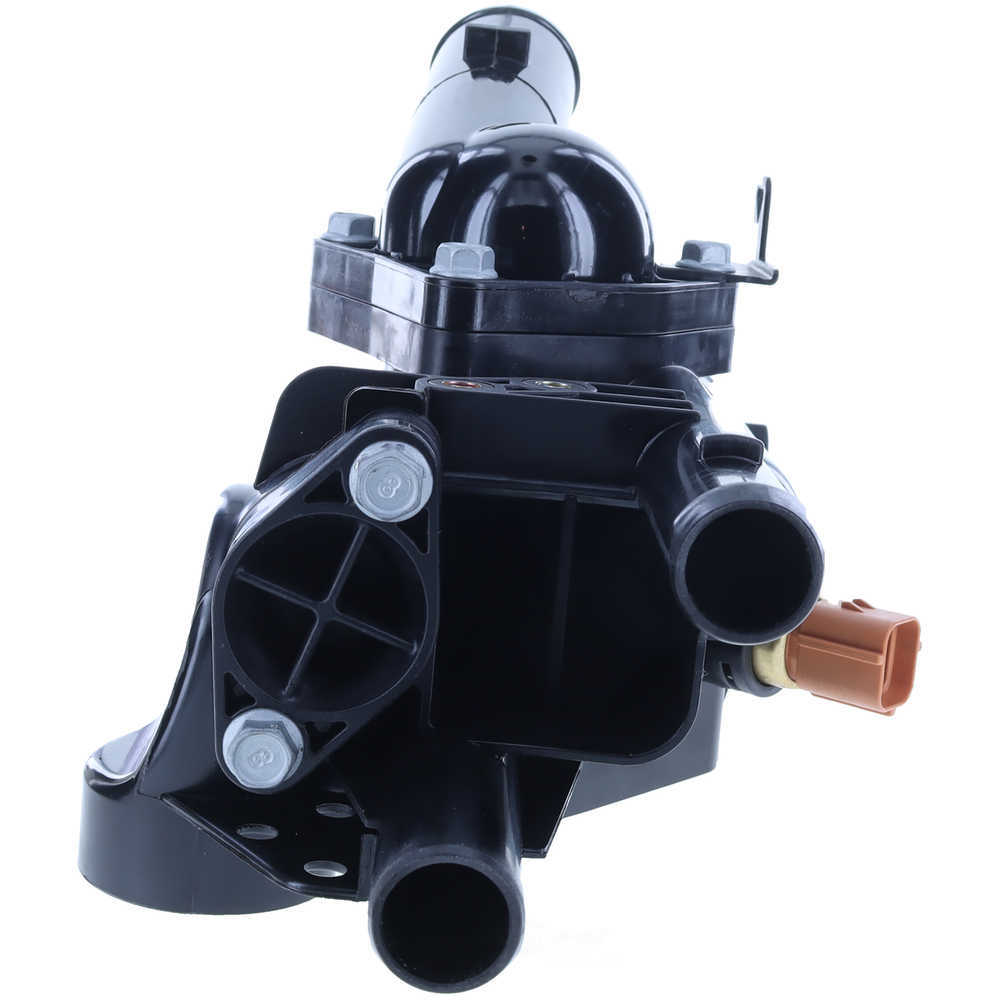

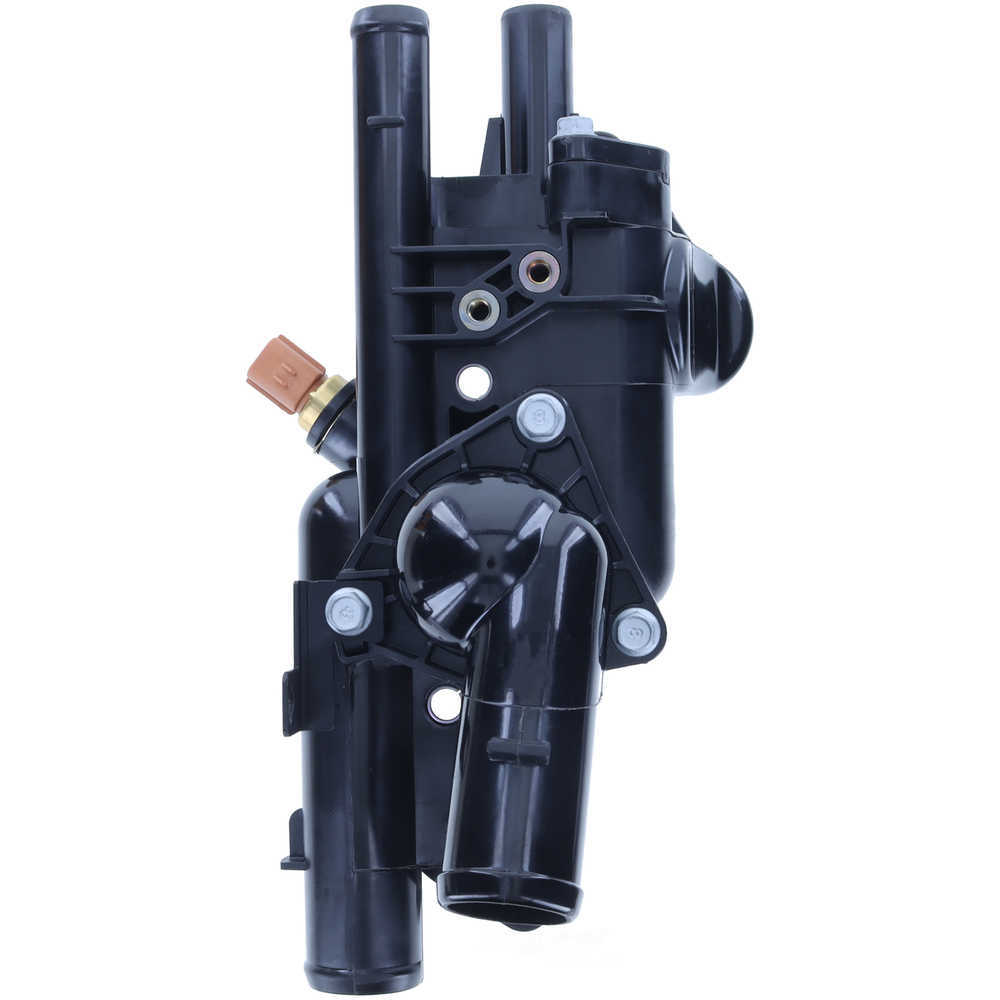

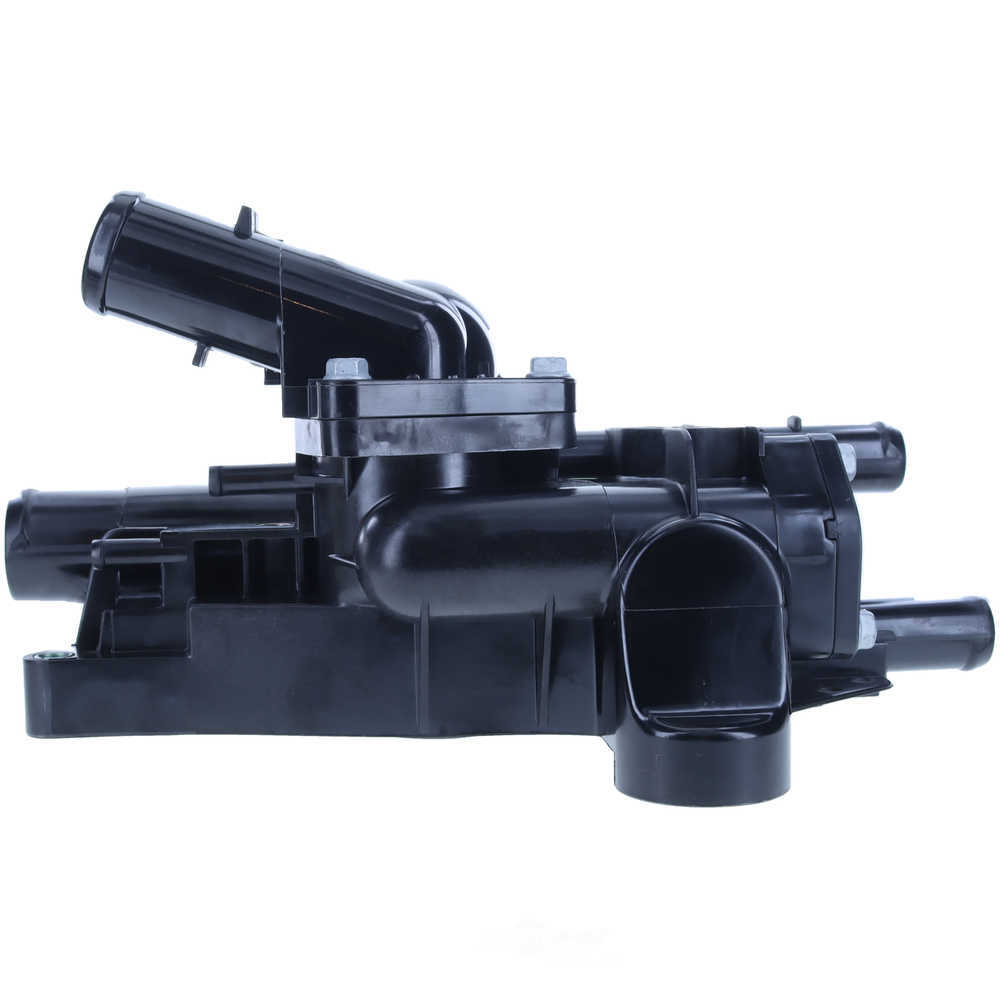

Engine Coolant Thermostat Housing Assembly - Motorad - Thermostat Housing Assembly-180 Degrees (Part Number: TA1089)
- CTO: KR
- Emission Code: 1
- Harmonized Tariff Code (Schedule B): 9032100090
- Harmonized Tariff Code (HTS): 9032100090
- Life Cycle Status Code: 2
- Life Cycle Status Description: Available to Order
- SDR Required Flag: N
- National Popularity Description: Non-Stock Item
- NPS: W
- Maximum Cases per Pallet Layer: 12
- Pallet Layer Maximum: 7
- PRC: New
- Taxable: Y
- Warranty Time: 12
- Warranty Time UOM: MO
- Bleeder Hole: Yes
- Bolt Hole Center To Bolt Hole Center: 3.44 IN
- Bypass Diameter: 1.10 in
- Color: Black
- Flange Diameter (With Seal): 1.00 in
- Flange Length: 1.00 IN
- Flange Thickness: .04 IN
- Gasket Or Seal Included: Yes
- Gasket/Seal Material: Rubber
- Gasket/Seal Preinstalled: Yes
- Grade Type: Regular
- Height Between Flanges: 1.29 in
- Height from Flange to Top of Bridge: 1.29
- Inlet Port Inside Diameter: 2.09,1.56,1.13 in
- Installation Tool included: No
- Jiggle Pin Included: Yes
- Jiggle Pin Weep Hole: Yes
- Material: Steel, Plastic, Rubber
- Meets or Exceeds Original Equipment Manufacture Specifications: Yes
- Mount Hole Diameter: .44 in
- Mounting Depth From Flange: 1.35
- Mounting Hardware Included: No
- Mounting Hole Quantity: 3
- Number Of Gaskets: 0
- Number Of Seals: 2
- Open Temperature: 180 Deg F
- Outlet Port Diameter: 1.44,1.46, .91,.91,.36,.36 in
- Outlet Port Quantity: 6
- Overall Height: 6.50 in
- Pulley Included: No
- Seal Type: O-Ring

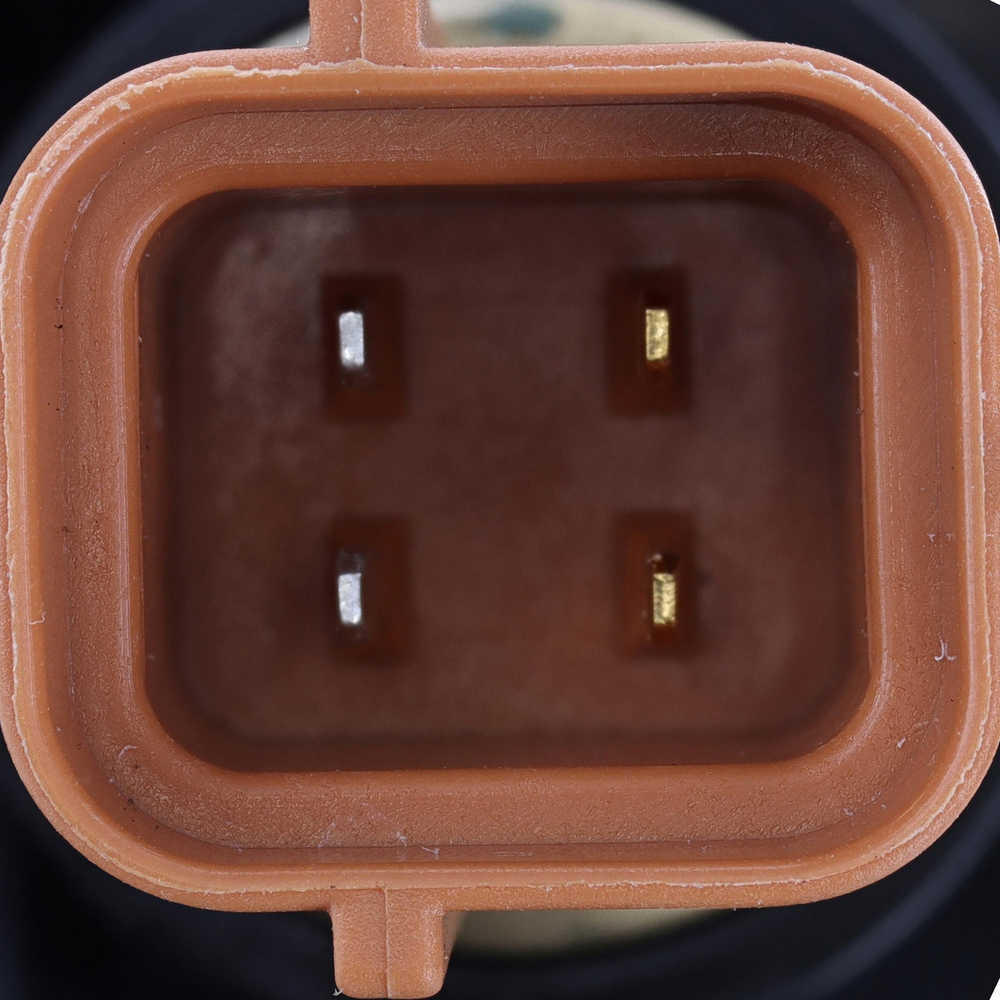

- Sensor Included: Yes
- Application Summary: (2009-10) Hyundai Sonata (2.4L),(2009-10) Kia Optima (2.4L),(2009-10) Kia Rondo (2.4L),
- AAIA Part Type Description: Engine Coolant Thermostat Housing Assembly
- Product Description - Invoice: Engine Coolant Thermostat Housing
- Key Search Words: Thermostat, Coolant Thermostat, OE Thermostat, Good Thermostat, Thermostat w/ seal, Engine Coolant Thermostat, Engine Thermostat, Cooling Thermostat, Cooling System Thermostat
- KSW: Thermostat,Coolant,Good,w/Seal,Engine,Cooling,System,Engine Coolant,Assembly
- Marketing Description: Manufactured to the highest OEM quality standards by an OE Supplier, using proprietary material to stand up to even the most demanding automotive cooling systems. Thermostat, temp sensors, seal and housing included. Thermal shock validated and 100% leak tested.
- Short Product Description: Thermostat Assembly
- Slang Description: Therm, Stat
- SLD: Therm,Stat
- Manufacturer:
- Motorad
- Part Number:
- TA1089
- Manufacturer Part Number:
- TA1089
- Description:
- Engine Coolant Thermostat Housing Assembly
- Long Description:
- Thermostat Housing Assembly-180 Degrees
- Part Type:
- Engine Coolant Thermostat Housing Assembly
- Category:
- Belts And Cooling
- Subcategory:
- Thermostat And Housing
- Warehouse Notes:
- COOLANT HOUSING - THERMOSTAT W/HOUSING
- Sales Rank:
Product Details
- Condition:
- New
- Product Fit:
- Direct Fit
- Weight:
- 2.53 lbs.
- Height:
- 6.5"
- Width:
- 7.5"
- Length:
- 7.5"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 1
- Minimum Order Qty:
- 1
- Item GTIN:
- 055644908182
Technical Details
- CTO
- KR
- Emission Code
- 1
- Harmonized Tariff Code (Schedule B)
- 9032100090
- Harmonized Tariff Code (HTS)
- 9032100090
- Life Cycle Status Code
- 2
- Life Cycle Status Description
- Available to Order
- SDR Required Flag
- N
- National Popularity Description
- Non-Stock Item
- NPS
- W
- Maximum Cases per Pallet Layer
- 12
- Pallet Layer Maximum
- 7
- PRC
- New
- Taxable
- Y
- Warranty Time
- 12
- Warranty Time UOM
- MO
- Bleeder Hole
- Yes
- Bolt Hole Center To Bolt Hole Center
- 3.44 IN
- Bypass Diameter
- 1.10 in
- Color
- Black
- Flange Diameter (With Seal)
- 1.00 in
- Flange Length
- 1.00 IN
- Flange Thickness
- .04 IN
- Gasket Or Seal Included
- Yes
- Gasket/Seal Material
- Rubber
- Gasket/Seal Preinstalled
- Yes
- Grade Type
- Regular
- Height Between Flanges
- 1.29 in
- Height from Flange to Top of Bridge
- 1.29
- Inlet Port Inside Diameter
- 2.09,1.56,1.13 in
- Installation Tool included
- No
- Jiggle Pin Included
- Yes
- Jiggle Pin Weep Hole
- Yes
- Material
- Steel, Plastic, Rubber
- Meets or Exceeds Original Equipment Manufacture Specifications
- Yes
- Mount Hole Diameter
- .44 in
- Mounting Depth From Flange
- 1.35
- Mounting Hardware Included
- No
- Mounting Hole Quantity
- 3
- Number Of Gaskets
- 0
- Number Of Seals
- 2
- Open Temperature
- 180 Deg F
- Outlet Port Diameter
- 1.44,1.46, .91,.91,.36,.36 in
- Outlet Port Quantity
- 6
- Overall Height
- 6.50 in
- Pulley Included
- No
- Seal Type
- O-Ring
- Sensor Included
- Yes
- Application Summary
- (2009-10) Hyundai Sonata (2.4L),(2009-10) Kia Optima (2.4L),(2009-10) Kia Rondo (2.4L),
- AAIA Part Type Description
- Engine Coolant Thermostat Housing Assembly
- Product Description - Invoice
- Engine Coolant Thermostat Housing
- Key Search Words
- Thermostat, Coolant Thermostat, OE Thermostat, Good Thermostat, Thermostat w/ seal, Engine Coolant Thermostat, Engine Thermostat, Cooling Thermostat, Cooling System Thermostat
- KSW
- Thermostat,Coolant,Good,w/Seal,Engine,Cooling,System,Engine Coolant,Assembly
- Marketing Description
- Manufactured to the highest OEM quality standards by an OE Supplier, using proprietary material to stand up to even the most demanding automotive cooling systems. Thermostat, temp sensors, seal and housing included. Thermal shock validated and 100% leak tested.
- Short Product Description
- Thermostat Assembly
- Slang Description
- Therm, Stat
- SLD
- Therm,Stat
Specifications
The MOTORAD Engine Coolant Thermostat Housing Assembly contains no remanufactured components, and is designed to operate in either city or highway driving.
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2010 | Kia | Optima | 2.4L | [Thermostat Assembly] Quantity needed per vehicle: 1 |
