To make sure this part does fit your vehicle Check The Fit

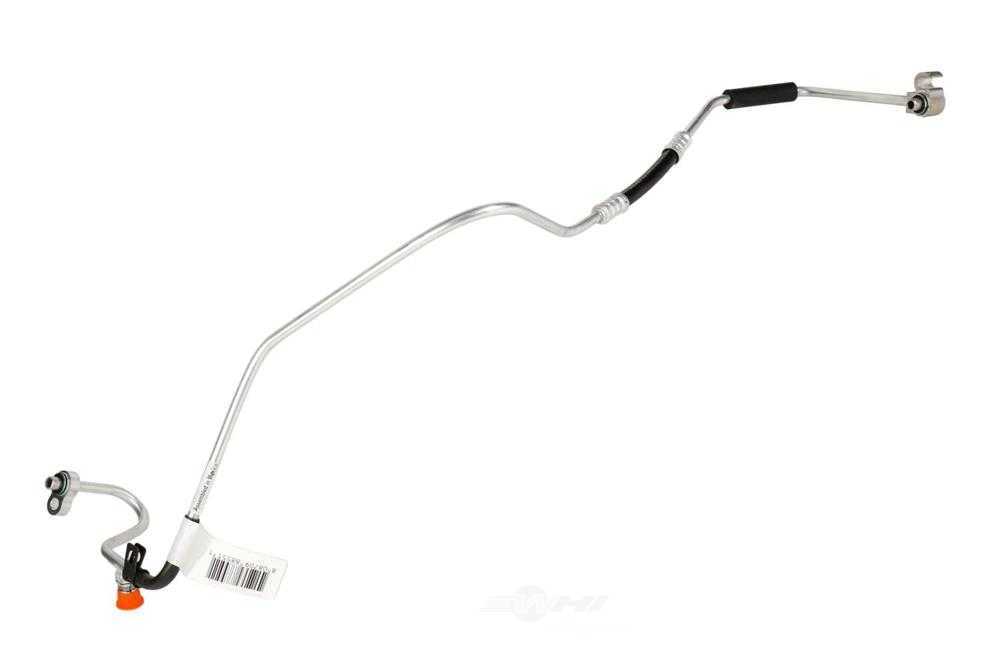

Ac Hose Assembly - Gm Genuine Parts - A/C Evaporator Tube Refrigerant Liquid Hose (Part Number: 15-32483)
- Application Summary: ChevroletChevroletGMCGMC
- AAIA Part Type Description: A/C Hose Assembly
- Extended Product Description: Air Conditioning Evaporator Tube Refrigerant Liquid Hose
- CTO: MX
- Harmonized Tariff Code (HTS): 8415908045
- Life Cycle Status Code: 4
- Life Cycle Status Description: Announced
- Maximum Cases per Pallet Layer: 50
- Pallet Layer Maximum: 4
- Part Number - Old: 84193610
- Warranty Special: 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details
- Warranty Special UOM: TX
- End 1 Inside Diameter: 0.34 IN
- End 1 Inside Diameter: 8.71 MM
- End 1 Outside Diameter: 0.46 IN
- End 1 Outside Diameter: 11.71 MM
- End 1 Type: Fitting Block
- End 2 Inside Diameter: 7.91 MM
- End 2 Inside Diameter: 0.31 IN
- End 2 Outside Diameter: 0.36 IN
- End 2 Outside Diameter: 9.15 MM
- End 2 Type: Fitting Block
- Fittings Included: Yes
- Gasket Or Seal Included: Yes
- Height: 7.5 IN
- Hose Shape: Molded Assembly
- Inside Diameter: 0.28 IN
- Inside Diameter: 7.05 MM
- Length: 33.67 IN
- Length: 858.51 MM
- Material: \"Aluminum, Rubber\"
- Original Equipment Replacement: Yes
- Outside Diameter: 0.38 IN
- Outside Diameter: 9.53 MM
- Programming Required: No
- Refrigerant Type: R134A
- Switch Service Port: Yes
- System Pressure: High
- Weight: 1.33 LB
- Width: 12.4 IN
- Manufacturer:
- Gm Genuine Parts
- Part Number:
- 15-32483
- Manufacturer Part Number:
- 15-32483
- Description:
- Ac Hose Assembly
- Long Description:
- A/C Evaporator Tube Refrigerant Liquid Hose
- Part Type:
- Ac Hose Assembly
- Category:
- Hvac
- Subcategory:
- Hoses And Pipes
- Warehouse Notes:
- LIQUID LINE ASSEMBLY - LIQUID LINE/HOSE
- Sales Rank:
Product Details
- Condition:
- New
- Product Fit:
- Direct Fit
- Weight:
- 1.33 lbs.
- Height:
- 7.5"
- Width:
- 12.4"
- Length:
- 12.4"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 1
- Minimum Order Qty:
- 1
- Position:
- At Evaporator
Technical Details
- Application Summary
- ChevroletChevroletGMCGMC
- AAIA Part Type Description
- A/C Hose Assembly
- Extended Product Description
- Air Conditioning Evaporator Tube Refrigerant Liquid Hose
- CTO
- MX
- Harmonized Tariff Code (HTS)
- 8415908045
- Life Cycle Status Code
- 4
- Life Cycle Status Description
- Announced
- Maximum Cases per Pallet Layer
- 50
- Pallet Layer Maximum
- 4
- Part Number - Old
- 84193610
- Warranty Special
- 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details
- Warranty Special UOM
- TX
- End 1 Inside Diameter
- 0.34 IN
- End 1 Inside Diameter
- 8.71 MM
- End 1 Outside Diameter
- 0.46 IN
- End 1 Outside Diameter
- 11.71 MM
- End 1 Type
- Fitting Block
- End 2 Inside Diameter
- 7.91 MM
- End 2 Inside Diameter
- 0.31 IN
- End 2 Outside Diameter
- 0.36 IN
- End 2 Outside Diameter
- 9.15 MM
- End 2 Type
- Fitting Block
- Fittings Included
- Yes
- Gasket Or Seal Included
- Yes
- Height
- 7.5 IN
- Hose Shape
- Molded Assembly
- Inside Diameter
- 0.28 IN
- Inside Diameter
- 7.05 MM
- Length
- 33.67 IN
- Length
- 858.51 MM
- Material
- \"Aluminum, Rubber\"
- Original Equipment Replacement
- Yes
- Outside Diameter
- 0.38 IN
- Outside Diameter
- 9.53 MM
- Programming Required
- No
- Refrigerant Type
- R134A
- Switch Service Port
- Yes
- System Pressure
- High
- Weight
- 1.33 LB
- Width
- 12.4 IN
Specifications
The GM GENUINE PARTS Ac Hose Assembly contains no remanufactured components, and is designed to operate in either city or highway driving.
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2009 | GMC | Savana 4500 | 6.0L | At Evaporator; Quantity needed per vehicle: 1 |
| 2009 | GMC | Savana 4500 | 6.6L | At Evaporator; Quantity needed per vehicle: 1 |
