To make sure this part does fit your vehicle Check The Fit

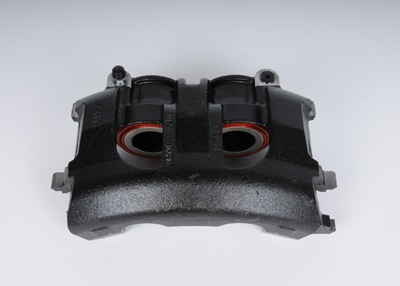

Disc Brake Caliper Repair Kit - Acdelco Gm Original Equipment - Rear Brake Caliper (Part Number: 172-2407)
- CTO: US
- Harmonized Tariff Code (HTS): 8708305090
- Life Cycle Status Code: 4
- Life Cycle Status Description: Announced
- Maximum Cases per Pallet Layer: 12
- Pallet Layer Maximum: 6
- Part Number - Old: 172-2342
- Warranty Special: 24 Month / Unlimited Mile Limited Warranty (Parts Only). Please see ACDelco.com for more details.
- Warranty Special UOM: TX
- AAIA Part Type Description: Disc Brake Caliper
- Extended Product Description: Rear Disc Brake Caliper Assembly
- Key Search Words: caliperloaded-caliperbrake-caliperbreak-claiperbrake-jobfront-brakerear-brakecyliderhydraluiccaliparcallypordot-3dot-4front-brakesrear-brakesbrake-setbreaks
- Abutment Clips Included: No
- Anti-Rattle Spring Included: No
- Bleeder Thread Diameter: 7 16-24
- Brake Caliper Manufacturer: TRW
- Caliper Color: Silver
- Caliper Slides Included: Yes
- Caliper Type: Floating
- Grade Type: Regular
- Height: 5.38 IN
- Inlet Fitting Type: Straight
- Inlet Thread Diameter: 0.44 IN
- Inlet Thread Diameter: 11.11 MM
- Length: 13.62 IN
- Mount Hole Diameter (in): 254in
- Mount Hole Diameter (mm): 10mm
- Mounting Bracket Included: No
- Mounting Hardware Included: No
- Pad Wear Sensor Included: No
- Pads Included: No
- Piston 1 Diameter (in): 2.6 in
- Piston 1 Diameter (mm): 66.04 mm
- Piston 2 Diameter (in): 2.6 in
- Piston 2 Diameter (mm): 66.04 mm
- Piston Quantity: 2
- Weight: 25.4 LB
- Width: 8.88 IN
- Manufacturer:
- Acdelco Gm Original Equipment
- Part Number:
- 172-2407
- Manufacturer Part Number:
- 172-2407
- Description:
- Disc Brake Caliper Repair Kit
- Long Description:
- Rear Brake Caliper
- Part Type:
- Disc Brake Caliper Repair Kit
- Category:
- Brake
- Subcategory:
- Service Kits
- Warehouse Notes:
- CALIPER ASM RR BRK - R CALIPER KIT
- Sales Rank:
Product Details
- Core Price:
- $ 44.00
- Condition:
- Remanufactured
- Product Fit:
- Direct Fit
- Weight:
- 25.4 lbs.
- Height:
- 5.38"
- Width:
- 8.88"
- Length:
- 8.88"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 1
- Minimum Order Qty:
- 1
- Position:
- Rear
Technical Details
- CTO
- US
- Harmonized Tariff Code (HTS)
- 8708305090
- Life Cycle Status Code
- 4
- Life Cycle Status Description
- Announced
- Maximum Cases per Pallet Layer
- 12
- Pallet Layer Maximum
- 6
- Part Number - Old
- 172-2342
- Warranty Special
- 24 Month / Unlimited Mile Limited Warranty (Parts Only). Please see ACDelco.com for more details.
- Warranty Special UOM
- TX
- AAIA Part Type Description
- Disc Brake Caliper
- Extended Product Description
- Rear Disc Brake Caliper Assembly
- Key Search Words
- caliperloaded-caliperbrake-caliperbreak-claiperbrake-jobfront-brakerear-brakecyliderhydraluiccaliparcallypordot-3dot-4front-brakesrear-brakesbrake-setbreaks
- Abutment Clips Included
- No
- Anti-Rattle Spring Included
- No
- Bleeder Thread Diameter
- 7 16-24
- Brake Caliper Manufacturer
- TRW
- Caliper Color
- Silver
- Caliper Slides Included
- Yes
- Caliper Type
- Floating
- Grade Type
- Regular
- Height
- 5.38 IN
- Inlet Fitting Type
- Straight
- Inlet Thread Diameter
- 0.44 IN
- Inlet Thread Diameter
- 11.11 MM
- Length
- 13.62 IN
- Mount Hole Diameter (in)
- 254in
- Mount Hole Diameter (mm)
- 10mm
- Mounting Bracket Included
- No
- Mounting Hardware Included
- No
- Pad Wear Sensor Included
- No
- Pads Included
- No
- Piston 1 Diameter (in)
- 2.6 in
- Piston 1 Diameter (mm)
- 66.04 mm
- Piston 2 Diameter (in)
- 2.6 in
- Piston 2 Diameter (mm)
- 66.04 mm
- Piston Quantity
- 2
- Weight
- 25.4 LB
- Width
- 8.88 IN
Specifications
The ACDELCO GM ORIGINAL EQUIPMENT Disc Brake Caliper Repair Kit contains no remanufactured components, and is designed to operate in either city or highway driving.
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2008 | GMC | C4500 Topkick | [Disc Brake Caliper Repair Kit] Rear; Quantity needed per vehicle: 1 | |
| 2008 | GMC | C4500 Topkick | 8.1L | [Disc Brake Caliper Repair Kit] Rear; Quantity needed per vehicle: 1 |
