To make sure this part does fit your vehicle Check The Fit

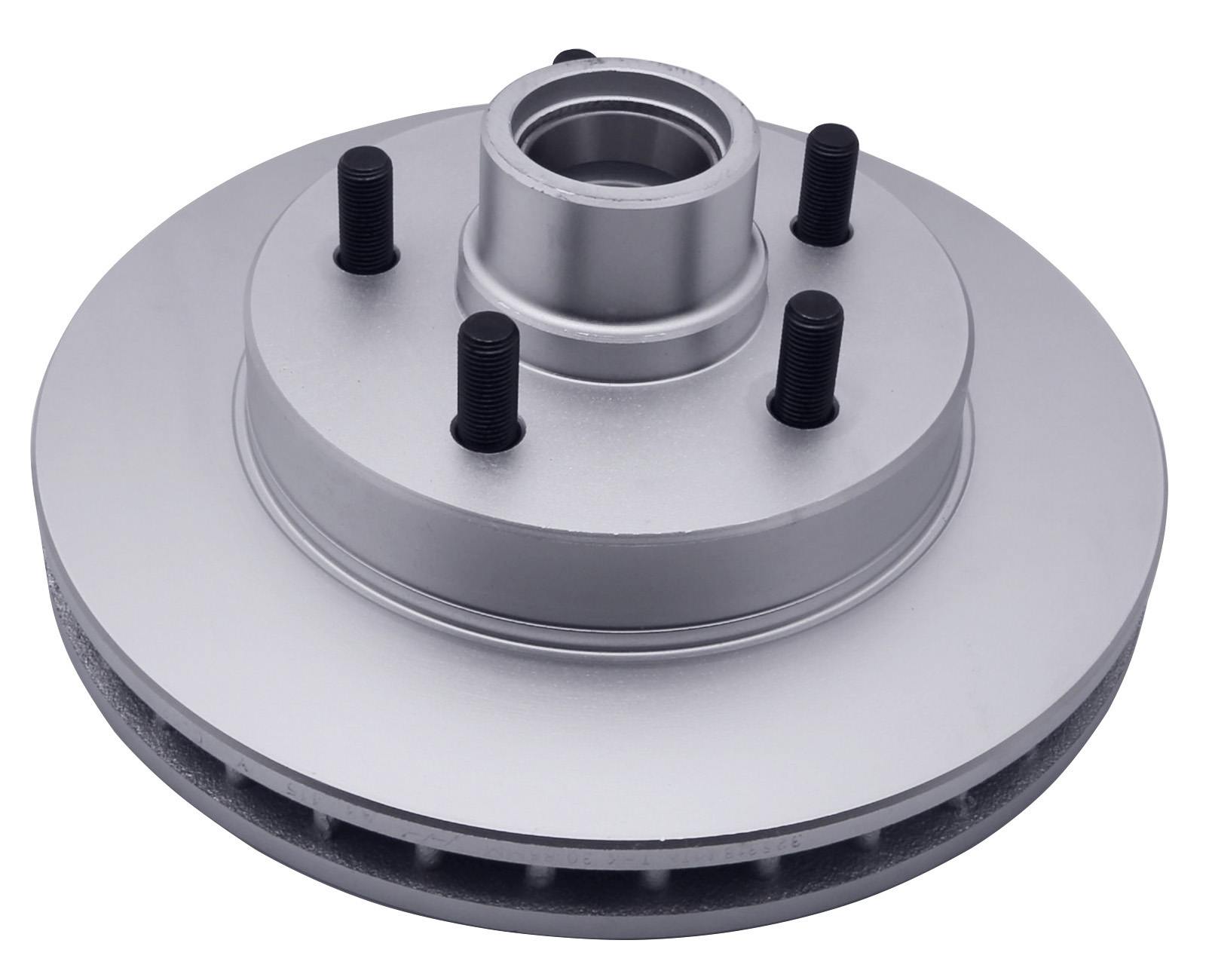

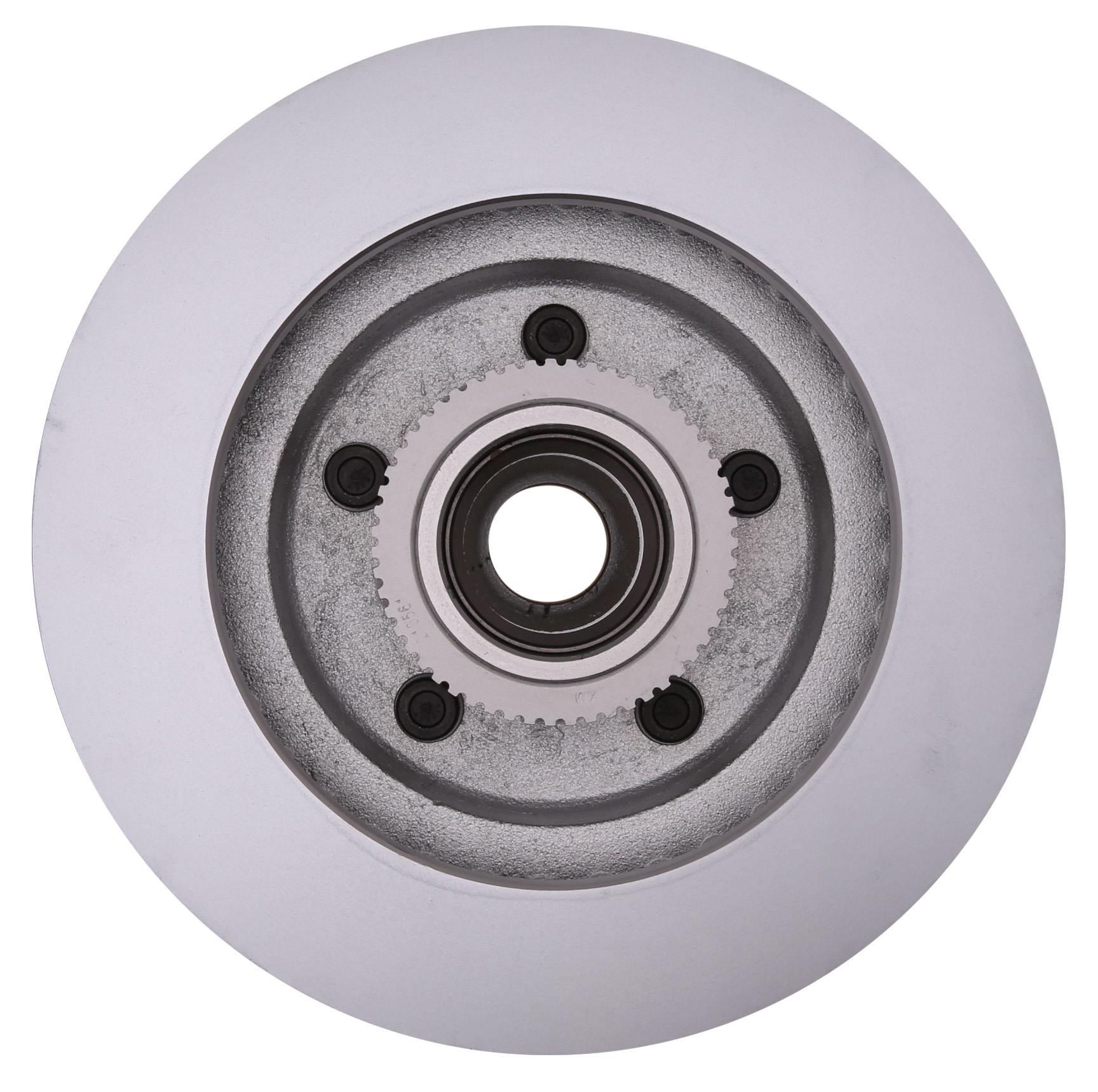

Disc Brake Rotor And Hub Assembly - Acdelco Silver/advantage - Front Brake Rotor (Part Number: 18A503AC)
- Application Summary: ChevroletGMC
- AAIA Part Type Description: Disc Brake Rotor and Hub Assembly
- Extended Product Description: Coated Front Disc Brake Rotor
- Key Search Words: brake-padrotorsbrake-jobfront-brakerear-brakefront-brakesrear-brakesbrake-setwheel-baering-baeringhubbearing-hubbearing-hub-assemblywheell-bearingabs-sensoranti-lock-brake-sensorhubabs-speed-sensorspeed-sensorabs-sensor
- CTO: CN
- Harmonized Tariff Code (HTS): 8708305030
- Life Cycle Status Code: 4
- Life Cycle Status Description: Announced
- Maximum Cases per Pallet Layer: 17
- Pallet Layer Maximum: 3
- Warranty Special: 12 Months/Unlimited Miles Warranty (Parts Only). Please see ACDelco.com for more details
- Warranty Special UOM: TX
- ABS Tone Ring Included: Yes
- Balancing Type: Balanced
- Directional or Non-Directional Brake Surface: Non-Directional
- Discard Thickness: 31 MM
- Discard Thickness: 1.22 IN
- Grade Type: Regular
- Height: 12.1 IN
- Hub Attached: Yes
- Length: 12.8 IN
- Meets or Exceeds Original Equipment Manufacture Specifications: Yes
- Mounting Bolt Hole Circle Diameter: 5 IN
- Mounting Bolt Hole Circle Diameter: 127 MM
- Mounting Bolt Hole Diameter: 0.603 IN
- Mounting Bolt Hole Diameter: 15.3 MM
- Mounting Bolt Hole Quantity: 5
- Nominal Thickness: 32.75 MM
- Nominal Thickness: 1.29 IN
- Overall Height: 114.05 MM
- Overall Height: 4.49 IN
- Programming Required: No
- Rust Resistant Coating: Yes
- Solid Or Vented Type Rotor: Vented
- Stud Quantity: 5
- Stud/Lug Hole Quantity: 5
- Weight: 26.3 LB
- Width: 5.1 IN
- Manufacturer:
- Acdelco Silver/advantage
- Part Number:
- 18A503AC
- Manufacturer Part Number:
- 18A503AC
- Description:
- Disc Brake Rotor And Hub Assembly
- Long Description:
- Front Brake Rotor
- Part Type:
- Disc Brake Rotor And Hub Assembly
- Category:
- Brake
- Subcategory:
- Drums And Rotors
- Warehouse Notes:
- ROTOR FRT BRK (COATED) - F HUB/ROTOR ASSY
- Sales Rank:
Product Details
- Condition:
- New
- Product Fit:
- Direct Fit
- Weight:
- 26.3 lbs.
- Height:
- 12.1"
- Width:
- 5.1"
- Length:
- 5.1"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 1
- Minimum Order Qty:
- 1
- Position:
- Front
Technical Details
- Application Summary
- ChevroletGMC
- AAIA Part Type Description
- Disc Brake Rotor and Hub Assembly
- Extended Product Description
- Coated Front Disc Brake Rotor
- Key Search Words
- brake-padrotorsbrake-jobfront-brakerear-brakefront-brakesrear-brakesbrake-setwheel-baering-baeringhubbearing-hubbearing-hub-assemblywheell-bearingabs-sensoranti-lock-brake-sensorhubabs-speed-sensorspeed-sensorabs-sensor
- CTO
- CN
- Harmonized Tariff Code (HTS)
- 8708305030
- Life Cycle Status Code
- 4
- Life Cycle Status Description
- Announced
- Maximum Cases per Pallet Layer
- 17
- Pallet Layer Maximum
- 3
- Warranty Special
- 12 Months/Unlimited Miles Warranty (Parts Only). Please see ACDelco.com for more details
- Warranty Special UOM
- TX
- ABS Tone Ring Included
- Yes
- Balancing Type
- Balanced
- Directional or Non-Directional Brake Surface
- Non-Directional
- Discard Thickness
- 31 MM
- Discard Thickness
- 1.22 IN
- Grade Type
- Regular
- Height
- 12.1 IN
- Hub Attached
- Yes
- Length
- 12.8 IN
- Meets or Exceeds Original Equipment Manufacture Specifications
- Yes
- Mounting Bolt Hole Circle Diameter
- 5 IN
- Mounting Bolt Hole Circle Diameter
- 127 MM
- Mounting Bolt Hole Diameter
- 0.603 IN
- Mounting Bolt Hole Diameter
- 15.3 MM
- Mounting Bolt Hole Quantity
- 5
- Nominal Thickness
- 32.75 MM
- Nominal Thickness
- 1.29 IN
- Overall Height
- 114.05 MM
- Overall Height
- 4.49 IN
- Programming Required
- No
- Rust Resistant Coating
- Yes
- Solid Or Vented Type Rotor
- Vented
- Stud Quantity
- 5
- Stud/Lug Hole Quantity
- 5
- Weight
- 26.3 LB
- Width
- 5.1 IN
Specifications
The ACDELCO SILVER/ADVANTAGE Disc Brake Rotor And Hub Assembly contains no remanufactured components, and is designed to operate in either city or highway driving.
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 1993 | GMC | Yukon | 5.7L | [Coated Disc Brake Rotor & Hub Assembly] Front; RWD; Quantity needed per vehicle: 2 |
