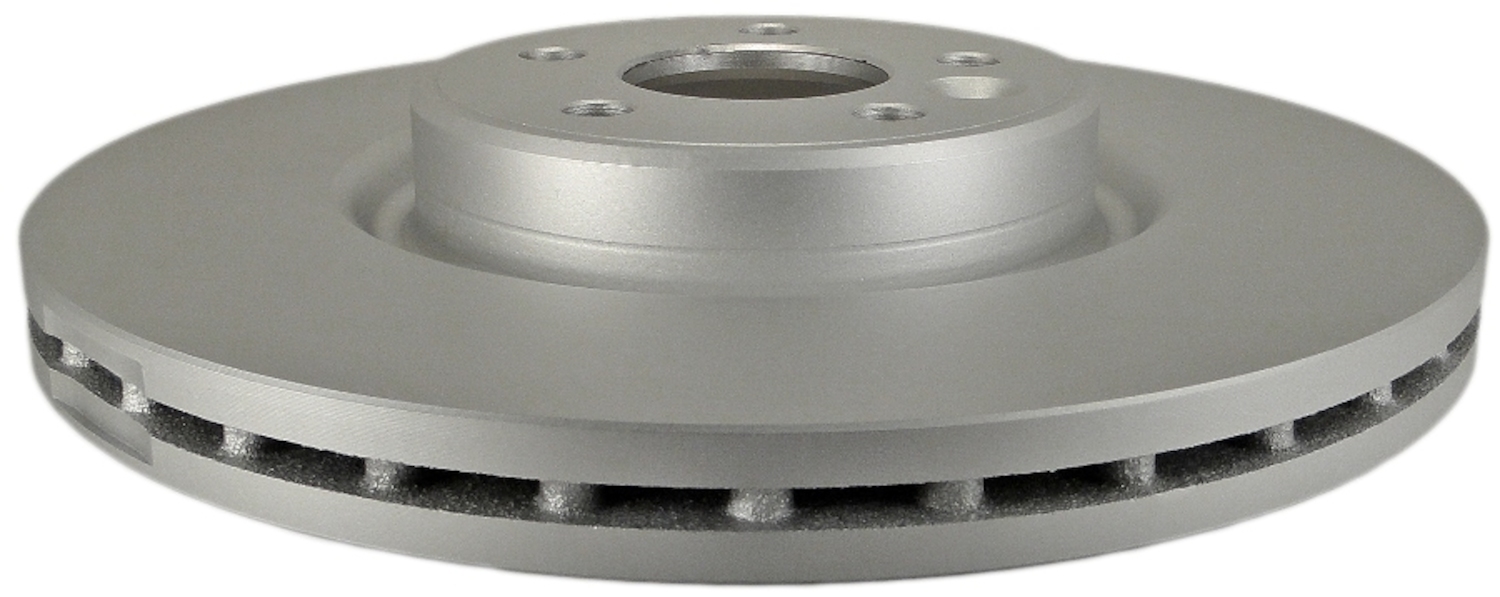

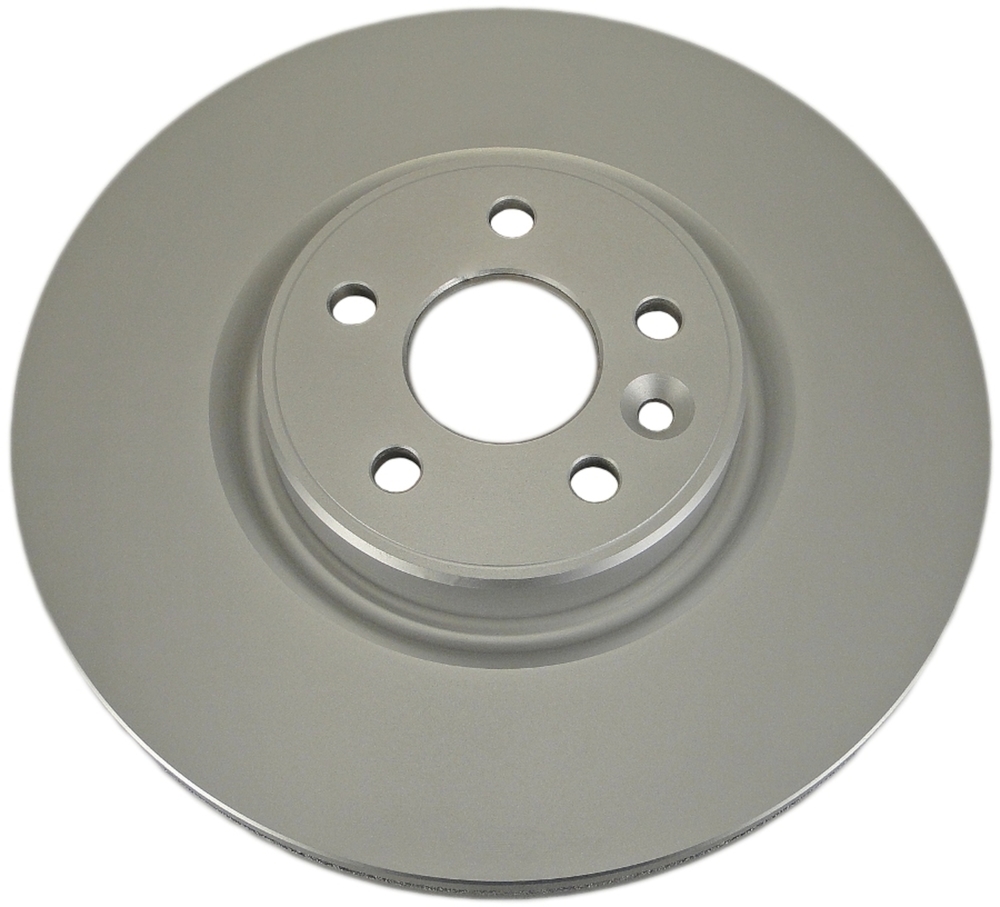

Disc Brake Rotor - Ultra Hc - Brake Rotor (Part Number: UR003440)
- AAIA Part Type Description: Disc Brake Rotor
- Key Search Words: Disc Brake Rotor
- KSW: Disc Brake Rotor
- Label Description: UltraHC Standard Replacement
- Marketing Description: A superior premium brake rotor for passenger cars, light trucks and SUVs, UltraHC provides the best overall performance for today's driving conditions. UltraHC brake rotors offer an upgrade in material to certified GG15HC high carbon.
- Short Product Description: BRAKE ROTOR

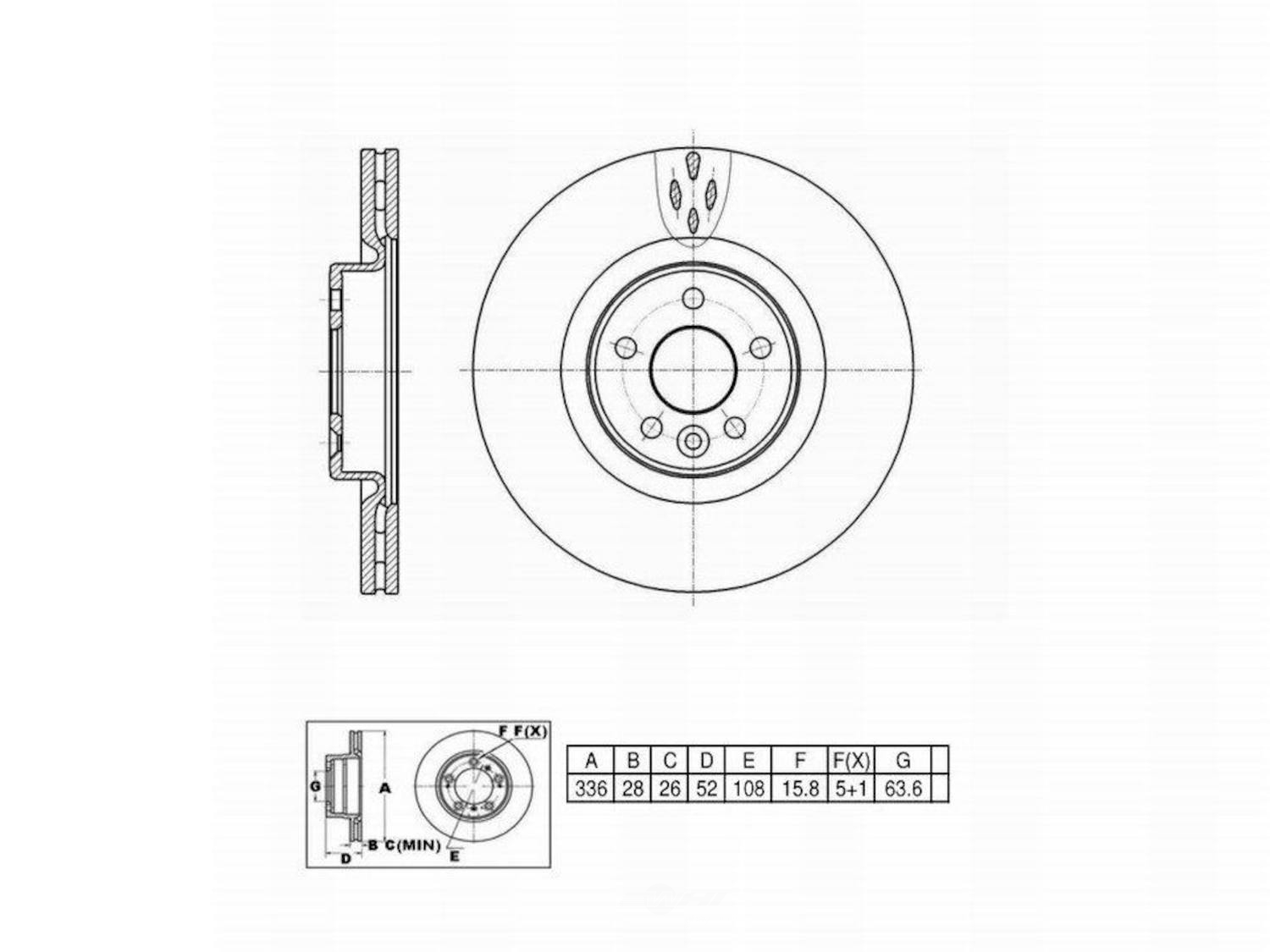

- Center Hole Diameter: 63.6 MM
- Center Hole Diameter: 2.504 IN
- Discard Thickness: 26.0 MM
- Discard Thickness: 1.024 IN
- Mounting Bolt Hole Circle Diameter: 108.0 MM
- Mounting Bolt Hole Circle Diameter: 4.252 IN
- Mounting Bolt Hole Quantity: 5 EA
- Nominal Thickness: 1.102 IN
- Nominal Thickness: 28.0 MM
- Outside Diameter: 13.228 IN
- Outside Diameter: 336.0 MM
- Overall Height: 2.047 IN
- Overall Height: 52.0 MM
- Solid Or Vented Type Rotor: Vented
- CTP: CN
- Emission Code: 1
- Canadian Harmonizing Tariff Code: N
- Harmonized Tariff Code (Schedule B): 8708305030
- Life Cycle Status Code: 4
- Life Cycle Status Description: Announced
- Original Supplier Part Number: CN
- Pallet Layer Maximum: 9
- Manufacturer:
- Ultra Hc
- Part Number:
- UR003440
- Manufacturer Part Number:
- UR003440
- Description:
- Disc Brake Rotor
- Long Description:
- Brake Rotor
- Part Type:
- Disc Brake Rotor
- Category:
- Brake
- Subcategory:
- Drums And Rotors
- Sales Rank:
Product Details
- Condition:
- New
- Product Fit:
- Direct Fit
- Weight:
- 26.01 lbs.
- Height:
- 33.07"
- Width:
- 43.31"
- Length:
- 43.31"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 2
- Minimum Order Qty:
- 1
- Item GTIN:
- 641801615699
Technical Details
- AAIA Part Type Description
- Disc Brake Rotor
- Key Search Words
- Disc Brake Rotor
- KSW
- Disc Brake Rotor
- Label Description
- UltraHC Standard Replacement
- Marketing Description
- A superior premium brake rotor for passenger cars, light trucks and SUVs, UltraHC provides the best overall performance for today's driving conditions. UltraHC brake rotors offer an upgrade in material to certified GG15HC high carbon.
- Short Product Description
- BRAKE ROTOR
- Center Hole Diameter
- 63.6 MM
- Center Hole Diameter
- 2.504 IN
- Discard Thickness
- 26.0 MM
- Discard Thickness
- 1.024 IN
- Mounting Bolt Hole Circle Diameter
- 108.0 MM
- Mounting Bolt Hole Circle Diameter
- 4.252 IN
- Mounting Bolt Hole Quantity
- 5 EA
- Nominal Thickness
- 1.102 IN
- Nominal Thickness
- 28.0 MM
- Outside Diameter
- 13.228 IN
- Outside Diameter
- 336.0 MM
- Overall Height
- 2.047 IN
- Overall Height
- 52.0 MM
- Solid Or Vented Type Rotor
- Vented
- CTP
- CN
- Emission Code
- 1
- Canadian Harmonizing Tariff Code
- N
- Harmonized Tariff Code (Schedule B)
- 8708305030
- Life Cycle Status Code
- 4
- Life Cycle Status Description
- Announced
- Original Supplier Part Number
- CN
- Pallet Layer Maximum
- 9
Specifications
The ULTRA HC Disc Brake Rotor contains no remanufactured components, and is designed to operate in either city or highway driving.
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2018 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2018 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2018 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2018 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2018 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2018 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2018 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2017 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2017 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2017 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2017 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2017 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2017 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2017 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | S60 | 2.5L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | S80 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | V60 | 2.5L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | V60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | V60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | XC70 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2016 | Volvo | XC70 | 2.5L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S60 | 1.6L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S60 | 2.5L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S80 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | V60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | V60 | 2.5L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | V60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | V60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | V60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | XC70 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | XC70 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2015 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S60 | 1.6L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S60 | 2.5L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | XC70 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2014 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S60 | 1.6L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S60 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S60 | 2.5L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S60 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S80 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | XC70 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2013 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2012 | Volvo | S80 | 2.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2012 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2012 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2012 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2012 | Volvo | XC70 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2012 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2012 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2011 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2011 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2011 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2011 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2011 | Volvo | XC70 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2011 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2011 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | S80 | 4.4L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | V70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | V70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | XC70 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2010 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2009 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2009 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2009 | Volvo | S80 | 4.4L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2009 | Volvo | V70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2009 | Volvo | XC70 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2009 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2008 | Volvo | S80 | 3.0L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2008 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2008 | Volvo | S80 | 4.4L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2008 | Volvo | V70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2008 | Volvo | XC70 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2007 | Volvo | S80 | 3.2L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
| 2007 | Volvo | S80 | 4.4L | [UltraHC Premium Disc Brake Rotor] Front; Quantity needed per vehicle: 2 |
Warranty Information
New products purchased from our store are covered by a manufacturer warranty. Other than applicable manufacturer warranties, or as otherwise provided in these Terms & Conditions, there are no warranties, express or implied for any of our products, and we specifically disclaim any warranty of merchantability or fitness for a particular purpose for tires, aftermarket wheels, and tire & aftermarket wheel packages.
For other parts, we provide a limited warranty of 90 days from the date received by the original purchaser or installer, unless otherwise specified, which covers the replacement of a defective part(s). The warranty applies only to parts replacement with same or better quality. For such cases, a full refund will be issued to the original purchaser. A refund or an exchange of a defective part will be processed only if it is accompanied by the original sales invoice. All items must be in their original condition and must not be damaged due to incorrect installation upon return. The warranty is limited only to the original purchaser and is non-transferable.
All items are given a limited 90-days warranty period by the manufacturer. The manufacturer will allow the parts to be covered by their warranty provided that the part was not modified by the buyer.
Under NO circumstances will our liability exceed the amount of the original sale.
Products damaged as a result of abuse, misuse, improper repairs or maintenance, improper installation, alteration, or modification will not be covered by the warranty.
The warranty does not cover airfreight charges, labor expenses, towing expenses, or rental car expenses resulting from installation errors. Return shipping is the responsibility of the buyer. We will not reimburse any return shipping charges incurred.
All returned items must have the RA (Return Authorization) number written outside the shipping box prior to return. The RA Numbers can be obtained by creating a return from within your account. Returned items without RA numbers will not be accepted.
Our liability does not cover lost or stolen packages mailed back by the customer containing the parts being claimed under warranty. Because the customer is the shipper, he/she is the only one who can file any lost claim with the shipping company. Therefore, the claim must be coordinated and processed through the shipping company by the customer.
