To make sure this part does fit your vehicle Check The Fit

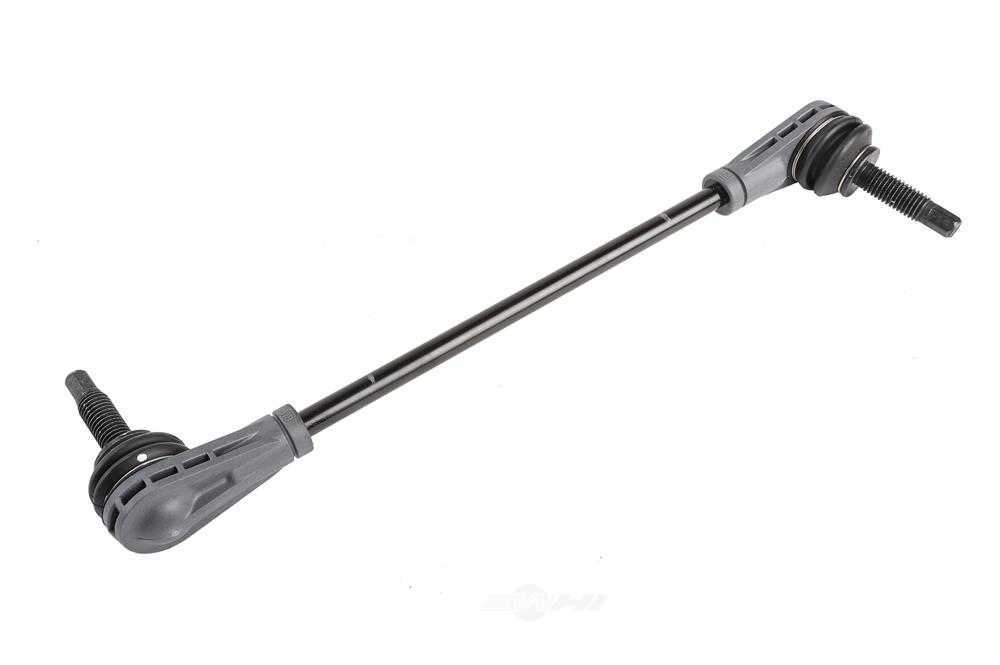

Suspension Stabilizer Bar Link - Gm Genuine Parts - Front Stabilizer Shaft Link (Part Number: 84517192)
- Bolt Thread Diameter: 12 MM
- Bolt Thread Diameter: 0.472440945 IN
- Bolt Thread Size: M12x1.75
- Bolts Included: Yes
- Boot Material: Rubber
- Bushings Included: No
- Dust Boot Included: Yes
- End 1 Type: Ball Joint
- End 2 Type: Ball Joint
- Grade Type: Regular
- Greaseable: No
- Hardware Included: Yes
- Height: 82.06 MM
- Height: 3.23 IN
- Housing Material: Plastic
- Length: 13.56 IN
- Length: 344.4 MM
- Locking Nuts Included: No
- Material: \"Steel, Rubber, Plastic\"
- Washers Included: No
- Weight: 0.81 LB
- Width: 2.22 IN
- Width: 56.27 MM
- CTO: KR
- Harmonized Tariff Code (HTS): 8708806590
- Life Cycle Status Code: 4
- Life Cycle Status Description: Announced
- Maximum Cases per Pallet Layer: 416
- Pallet Layer Maximum: 1
- Part Number - Old: 84134172
- Warranty Special: Limited Lifetime Warranty (Parts Only). Please see ACDelco.com for more details
- Warranty Special UOM: TX
- Application Summary: ChevroletGMC
- AAIA Part Type Description: Suspension Stabilizer Bar Link
- Extended Product Description: Front Stabilizer Shaft Link
- Key Search Words: susspensionsuspensionsstabiliserstabilizingstabilisinglinkagelinksrodshafttubestabilizationstabilisationcushioningendswayanti-rollantirollsway-barsway-bar-linkroll-bar-linklink-end
- Manufacturer:
- Gm Genuine Parts
- Part Number:
- 84517192
- Manufacturer Part Number:
- 84517192
- Description:
- Suspension Stabilizer Bar Link
- Long Description:
- Front Stabilizer Shaft Link
- Part Type:
- Suspension Stabilizer Bar Link
- Category:
- Suspension
- Subcategory:
- Suspension Springs And Related Components
- Sales Rank:
Product Details
- Condition:
- New
- Product Fit:
- Direct Fit
- Weight:
- 0.81 lbs.
- Height:
- 1.9"
- Width:
- 3.8"
- Length:
- 3.8"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Minimum Order Qty:
- 1
Technical Details
- Bolt Thread Diameter
- 12 MM
- Bolt Thread Diameter
- 0.472440945 IN
- Bolt Thread Size
- M12x1.75
- Bolts Included
- Yes
- Boot Material
- Rubber
- Bushings Included
- No
- Dust Boot Included
- Yes
- End 1 Type
- Ball Joint
- End 2 Type
- Ball Joint
- Grade Type
- Regular
- Greaseable
- No
- Hardware Included
- Yes
- Height
- 82.06 MM
- Height
- 3.23 IN
- Housing Material
- Plastic
- Length
- 13.56 IN
- Length
- 344.4 MM
- Locking Nuts Included
- No
- Material
- \"Steel, Rubber, Plastic\"
- Washers Included
- No
- Weight
- 0.81 LB
- Width
- 2.22 IN
- Width
- 56.27 MM
- CTO
- KR
- Harmonized Tariff Code (HTS)
- 8708806590
- Life Cycle Status Code
- 4
- Life Cycle Status Description
- Announced
- Maximum Cases per Pallet Layer
- 416
- Pallet Layer Maximum
- 1
- Part Number - Old
- 84134172
- Warranty Special
- Limited Lifetime Warranty (Parts Only). Please see ACDelco.com for more details
- Warranty Special UOM
- TX
- Application Summary
- ChevroletGMC
- AAIA Part Type Description
- Suspension Stabilizer Bar Link
- Extended Product Description
- Front Stabilizer Shaft Link
- Key Search Words
- susspensionsuspensionsstabiliserstabilizingstabilisinglinkagelinksrodshafttubestabilizationstabilisationcushioningendswayanti-rollantirollsway-barsway-bar-linkroll-bar-linklink-end
Specifications
The GM GENUINE PARTS Suspension Stabilizer Bar Link contains no remanufactured components, and is designed to operate in either city or highway driving.
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2024 | Chevrolet | Equinox | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2024 | GMC | Terrain | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2024 | GMC | Terrain | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2023 | Chevrolet | Equinox | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2023 | GMC | Terrain | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2023 | GMC | Terrain | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2022 | Chevrolet | Equinox | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2022 | GMC | Terrain | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2021 | Chevrolet | Equinox | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2021 | GMC | Terrain | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2021 | GMC | Terrain | 2.0L | Front; Quantity needed per vehicle: 2 |
| 2020 | Chevrolet | Equinox | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2020 | Chevrolet | Equinox | 2.0L | Front; Quantity needed per vehicle: 2 |
| 2020 | GMC | Terrain | 1.5L | Front; SLT; Quantity needed per vehicle: 2 |
| 2020 | GMC | Terrain | 2.0L | Front; SLT; Quantity needed per vehicle: 2 |
| 2019 | Chevrolet | Equinox | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2019 | Chevrolet | Equinox | 1.6L | Front; Quantity needed per vehicle: 2 |
| 2019 | Chevrolet | Equinox | 2.0L | Front; Quantity needed per vehicle: 2 |
| 2019 | GMC | Terrain | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2019 | GMC | Terrain | 1.6L | Front; Quantity needed per vehicle: 2 |
| 2019 | GMC | Terrain | 2.0L | Front; Quantity needed per vehicle: 2 |
| 2018 | Chevrolet | Equinox | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2018 | Chevrolet | Equinox | 1.6L | Front; Quantity needed per vehicle: 2 |
| 2018 | Chevrolet | Equinox | 2.0L | Front; Quantity needed per vehicle: 2 |
| 2018 | GMC | Terrain | 1.5L | Front; Quantity needed per vehicle: 2 |
| 2018 | GMC | Terrain | 1.6L | Front; Quantity needed per vehicle: 2 |
| 2018 | GMC | Terrain | 2.0L | Front; Quantity needed per vehicle: 2 |
