GM GENUINE PARTS - Fuel Pump Module Assembly - GMP 19420747
GM GENUINE PARTS - Fuel Pump Module Assembly - GMP 19420747
GM GENUINE PARTS - Fuel Pump Module Assembly - GMP 19420747
‹ ›

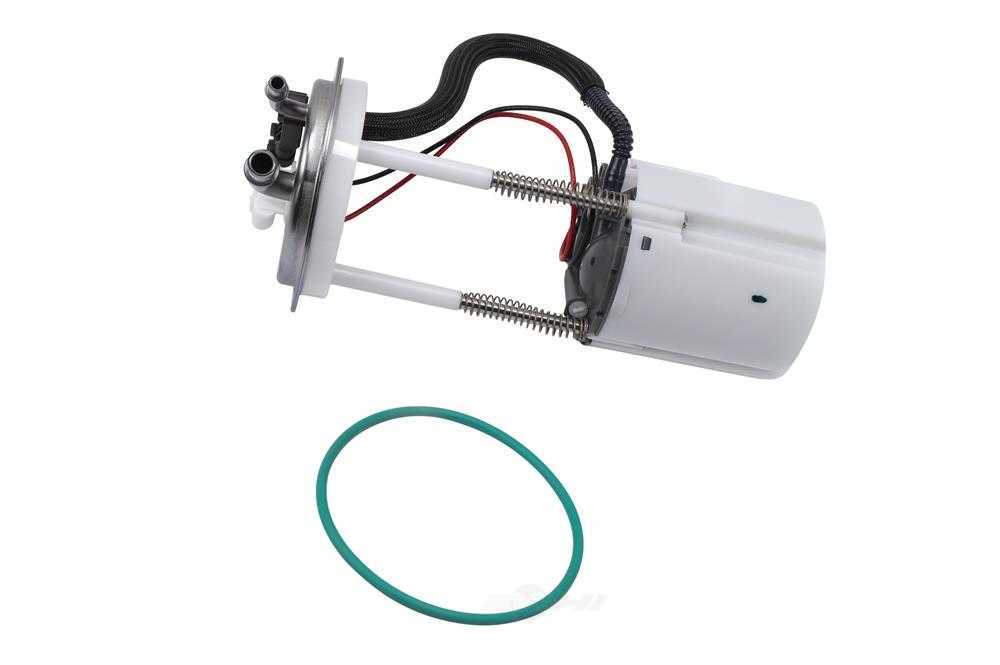

Fuel Pump Module Assembly - Gm Genuine Parts - Fuel Pump Module Assembly (Part Number: 19420747)

  • Price:   $  0.00

  • Availability: Call for Availability

Check The Fit

  • Application Summary: ChevroletChevroletGMCGMC
  • AAIA Part Type Description: Fuel Pump Module Assembly
  • Extended Product Description: Fuel Tank Fuel Pump Module Kit without Level Sensor, with Seal and Fuel Tank Pressure Sensor
  • Key Search Words: gasdieselpetrolfulehosenozzleassemblieskitsystemfuel-pumpfuel-pumpspumpfulfualgasgasolinepetrolmechanicalelectricturboelectricaldieseldiaphragmplunger-typeplungerin-tankin-lineinlinesumpsurgeinletoutletunitfuel-sock
  • CTO: MX
  • Harmonized Tariff Code (HTS): 8413309030
  • Life Cycle Status Code: 4
  • Life Cycle Status Description: Announced
  • Maximum Cases per Pallet Layer: 8
  • Pallet Layer Maximum: 4
  • Part Number - Old: MU2250
  • Warranty Special: Limited Lifetime Warranty (Parts Only). Please see ACDelco.com for more details
  • Warranty Special UOM: TX

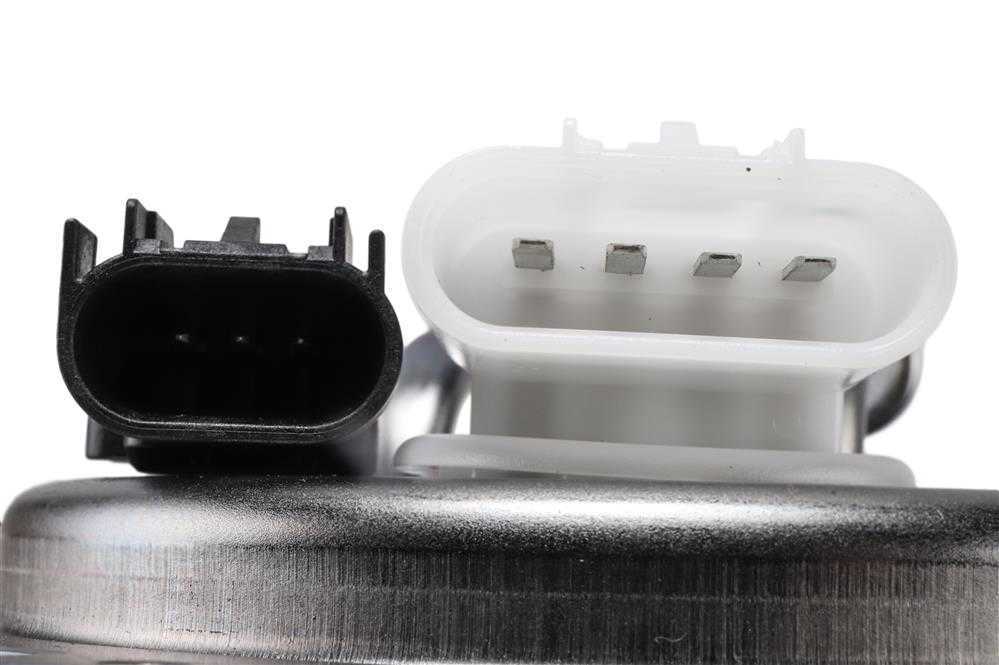

  • Connector Gender: Female
  • Connector Shape: Oval
  • Fuel Sending Unit Included: No
  • Fuel Tank Pressure Sensor Included: Yes
  • Fuel Type: Gas
  • Housing Material: Plastic
  • In Tank or External: In Tank
  • Internal Or External Strainer: Internal
  • Length: 12.14 IN
  • Length: 308.32 MM
  • Lock Ring Included: No
  • Mounting Hardware Included: No
  • Outlet Outside Diameter: 0.37 IN
  • Outlet Outside Diameter: 9.39 MM
  • Outlet Quantity: 2
  • Outlet Type: Quick Connect
  • Pump Type: Electric
  • Regulator Included: No
  • Terminal Gender: Male
  • Terminal Quantity: 7
  • Terminal Type: Blade
  • Top Mount Diameter: 129.5 MM
  • Top Mount Diameter: 5.1 IN
  • Universal Or Specific Fit: Specific
  • Voltage: 12 VDC
  • Width: 157.32 MM
  • Width: 6.19 IN
  • Wire Harness Included: No

Product Details

Manufacturer:
Gm Genuine Parts
Part Number:
19420747
Manufacturer Part Number:
19420747
Description:
Fuel Pump Module Assembly
Long Description:
Part Type:
Fuel Pump Module Assembly
Category:
Air And Fuel Delivery
Subcategory:
Fuel Pumps And Related Components
Sales Rank:

Technical Details

Condition:
New
Product Fit:
Direct Fit
Weight:
3.62 lbs.
Height:
9.75"
Width:
12"
Length:
12"
UOM:
EA
Quantity Sold:
Sold individually
Minimum Order Qty:
1

Specifications

Application Summary
ChevroletChevroletGMCGMC
AAIA Part Type Description
Fuel Pump Module Assembly
Extended Product Description
Fuel Tank Fuel Pump Module Kit without Level Sensor, with Seal and Fuel Tank Pressure Sensor
Key Search Words
gasdieselpetrolfulehosenozzleassemblieskitsystemfuel-pumpfuel-pumpspumpfulfualgasgasolinepetrolmechanicalelectricturboelectricaldieseldiaphragmplunger-typeplungerin-tankin-lineinlinesumpsurgeinletoutletunitfuel-sock
CTO
MX
Harmonized Tariff Code (HTS)
8413309030
Life Cycle Status Code
4
Life Cycle Status Description
Announced
Maximum Cases per Pallet Layer
8
Pallet Layer Maximum
4
Part Number - Old
MU2250
Warranty Special
Limited Lifetime Warranty (Parts Only). Please see ACDelco.com for more details
Warranty Special UOM
TX
Connector Gender
Female
Connector Shape
Oval
Fuel Sending Unit Included
No
Fuel Tank Pressure Sensor Included
Yes
Fuel Type
Gas
Housing Material
Plastic
In Tank or External
In Tank
Internal Or External Strainer
Internal
Length
12.14 IN
Length
308.32 MM
Lock Ring Included
No
Mounting Hardware Included
No
Outlet Outside Diameter
0.37 IN
Outlet Outside Diameter
9.39 MM
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Type
Electric
Regulator Included
No
Terminal Gender
Male
Terminal Quantity
7
Terminal Type
Blade
Top Mount Diameter
129.5 MM
Top Mount Diameter
5.1 IN
Universal Or Specific Fit
Specific
Voltage
12 VDC
Width
157.32 MM
Width
6.19 IN
Wire Harness Included
No

The GM GENUINE PARTS Fuel Pump Module Assembly contains no remanufactured components, and is designed to operate in either city or highway driving.

Year Make Model Engine Notes
2016ChevroletExpress 35004.8LVIN: F, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2016ChevroletExpress 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2016ChevroletExpress 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2016ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2016ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2016GMCSavana 35004.8LVIN: F, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2016GMCSavana 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2016GMCSavana 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2016GMCSavana 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2016GMCSavana 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2015ChevroletExpress 35004.8LVIN: F, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2015ChevroletExpress 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2015ChevroletExpress 45006.0LVIN: B, Eng Code: LC8; Quantity needed per vehicle: 1
2015ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2015ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2015GMCSavana 35004.8LVIN: F, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2015GMCSavana 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2015GMCSavana 45006.0LVIN: B, Eng Code: LC8; Quantity needed per vehicle: 1
2015GMCSavana 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2014ChevroletExpress 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2014ChevroletExpress 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2014ChevroletExpress 45006.0LVIN: B, Eng Code: LC8; Quantity needed per vehicle: 1
2014ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2014ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2014GMCSavana 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2014GMCSavana 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2014GMCSavana 45006.0LVIN: B, Eng Code: LC8; Quantity needed per vehicle: 1
2014GMCSavana 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2013ChevroletExpress 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2013ChevroletExpress 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2013ChevroletExpress 45006.0LVIN: B, Eng Code: LC8; Quantity needed per vehicle: 1
2013ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2013GMCSavana 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2013GMCSavana 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2013GMCSavana 45006.0LVIN: B, Eng Code: LC8; Quantity needed per vehicle: 1
2013GMCSavana 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2012ChevroletExpress 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2012ChevroletExpress 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2012ChevroletExpress 45006.0LVIN: B, Eng Code: LC8; Quantity needed per vehicle: 1
2012ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2012GMCSavana 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2012GMCSavana 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2012GMCSavana 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2011ChevroletExpress 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2011ChevroletExpress 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2011ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2011GMCSavana 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2011GMCSavana 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2011GMCSavana 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2010ChevroletExpress 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2010ChevroletExpress 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2010ChevroletExpress 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
2010GMCSavana 35004.8LVIN: A, Eng Code: L20, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2010GMCSavana 35006.0LVIN: G, Eng Code: L96, 2 Door, Cutaway Van; Quantity needed per vehicle: 1
2010GMCSavana 45006.0LVIN: G, Eng Code: L96; Quantity needed per vehicle: 1
