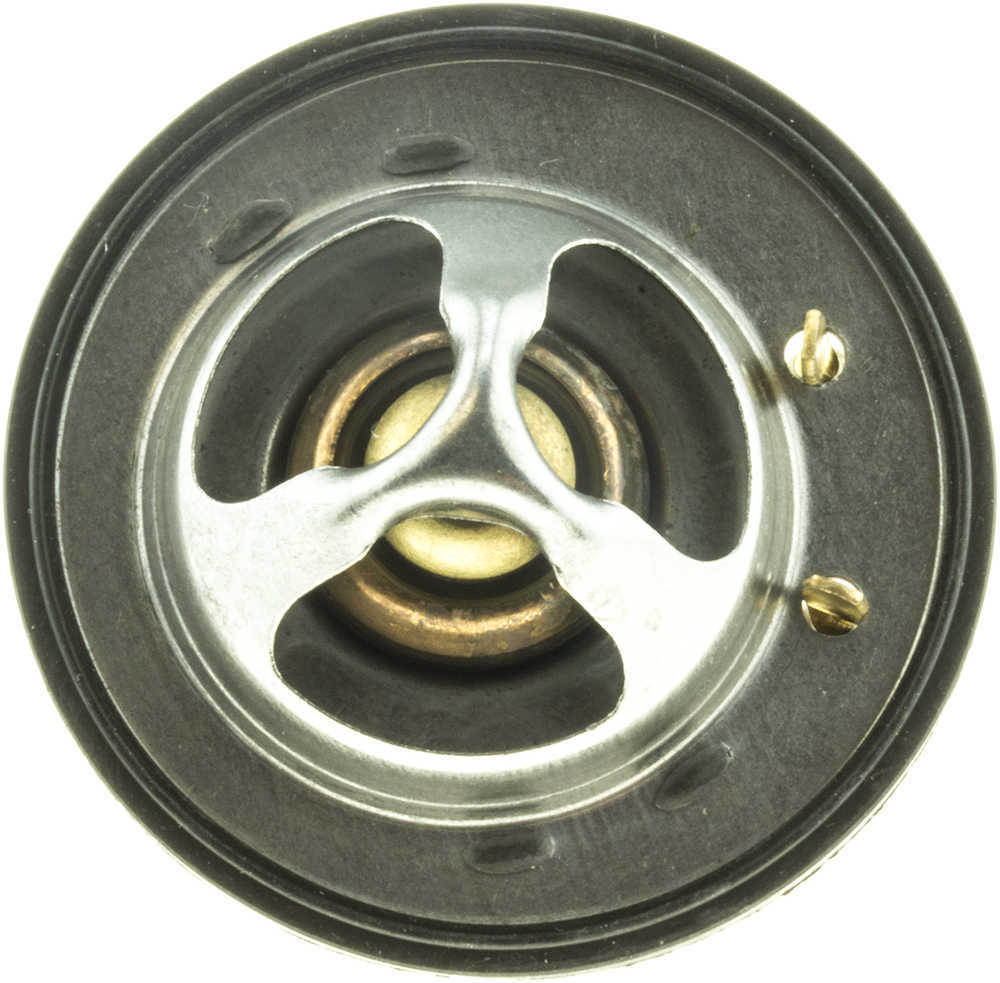

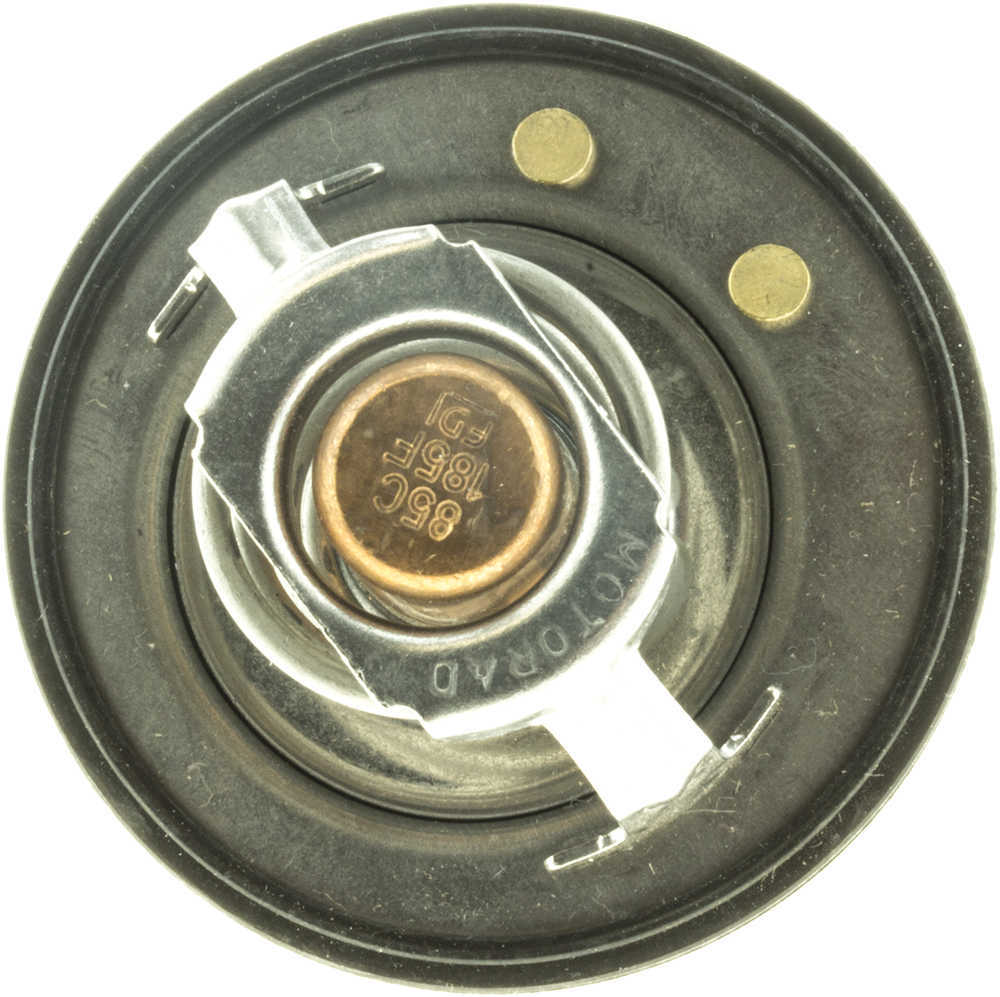

Engine Coolant Thermostat - Gates - Green Stripe Heavy-Duty Engine Coolant Thermostat (Part Number: 33965)
- Design: Offset Reverse Poppet
- Flange Height: .675 IN
- Gasket Quantity: 0
- Height: 1.74 IN
- Height Between Flanges: .8 IN
- Installation Tool Included: No
- Jiggle Pin Check Valve Quantity: 2
- Jiggle Pin Weep Hole: Yes
- Material: Steel, Copper
- Seal Quantity: 1
- Seal Type: O-Ring
- Sealing Flange Outside Diameter: 2.13 IN
- Start to Open Temperature: 85 CE
- Start to Open Temperature: 185 FA
- Type: Heavy-Duty Thermostat
- Abbreviated Product Description: Thermostat
- Application Summary: 2012-05 Isuzu, NPR, Isuzu 4HK1-TC Diesel, Thermostat - Pass. Side
- Product Description - Invoice: Engine Coolant Thermostat
- Marketing Description: Green Stripe Heavy-Duty Thermostats are designed to withstand noise, vibration, and harshness found under the hood on heavy-duty truck, bus, tractors and heavy equipment applications.
- Short Product Description: Thermostat
- TLE: Green Stripe(R) Heavy-Duty Engine Coolant Thermostat
- CTO: CN
- Harmonized Tariff Code (Schedule B): 8481809015
- Life Cycle Status Code: 4
- SDR Required Flag: N
- Taxable: Y
- Manufacturer:
- Gates
- Part Number:
- 33965
- Manufacturer Part Number:
- 33965
- Description:
- Engine Coolant Thermostat
- Long Description:
- Green Stripe Heavy-Duty Engine Coolant Thermostat
- Part Type:
- Engine Coolant Thermostat
- Category:
- Belts And Cooling
- Subcategory:
- Thermostat And Housing
- Sales Rank:
Product Details
- Weight:
- 0.23 lbs.
- Height:
- 2.75"
- Width:
- 2.75"
- Length:
- 2.75"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 1
- Minimum Order Qty:
- 1
- Item GTIN:
- 770075226000
Technical Details
- Design
- Offset Reverse Poppet
- Flange Height
- .675 IN
- Gasket Quantity
- 0
- Height
- 1.74 IN
- Height Between Flanges
- .8 IN
- Installation Tool Included
- No
- Jiggle Pin Check Valve Quantity
- 2
- Jiggle Pin Weep Hole
- Yes
- Material
- Steel, Copper
- Seal Quantity
- 1
- Seal Type
- O-Ring
- Sealing Flange Outside Diameter
- 2.13 IN
- Start to Open Temperature
- 85 CE
- Start to Open Temperature
- 185 FA
- Type
- Heavy-Duty Thermostat
- Abbreviated Product Description
- Thermostat
- Application Summary
- 2012-05 Isuzu, NPR, Isuzu 4HK1-TC Diesel, Thermostat - Pass. Side
- Product Description - Invoice
- Engine Coolant Thermostat
- Marketing Description
- Green Stripe Heavy-Duty Thermostats are designed to withstand noise, vibration, and harshness found under the hood on heavy-duty truck, bus, tractors and heavy equipment applications.
- Short Product Description
- Thermostat
- TLE
- Green Stripe(R) Heavy-Duty Engine Coolant Thermostat
- CTO
- CN
- Harmonized Tariff Code (Schedule B)
- 8481809015
- Life Cycle Status Code
- 4
- SDR Required Flag
- N
- Taxable
- Y
Specifications
The GATES Engine Coolant Thermostat contains no remanufactured components, and is designed to operate in either city or highway driving.
