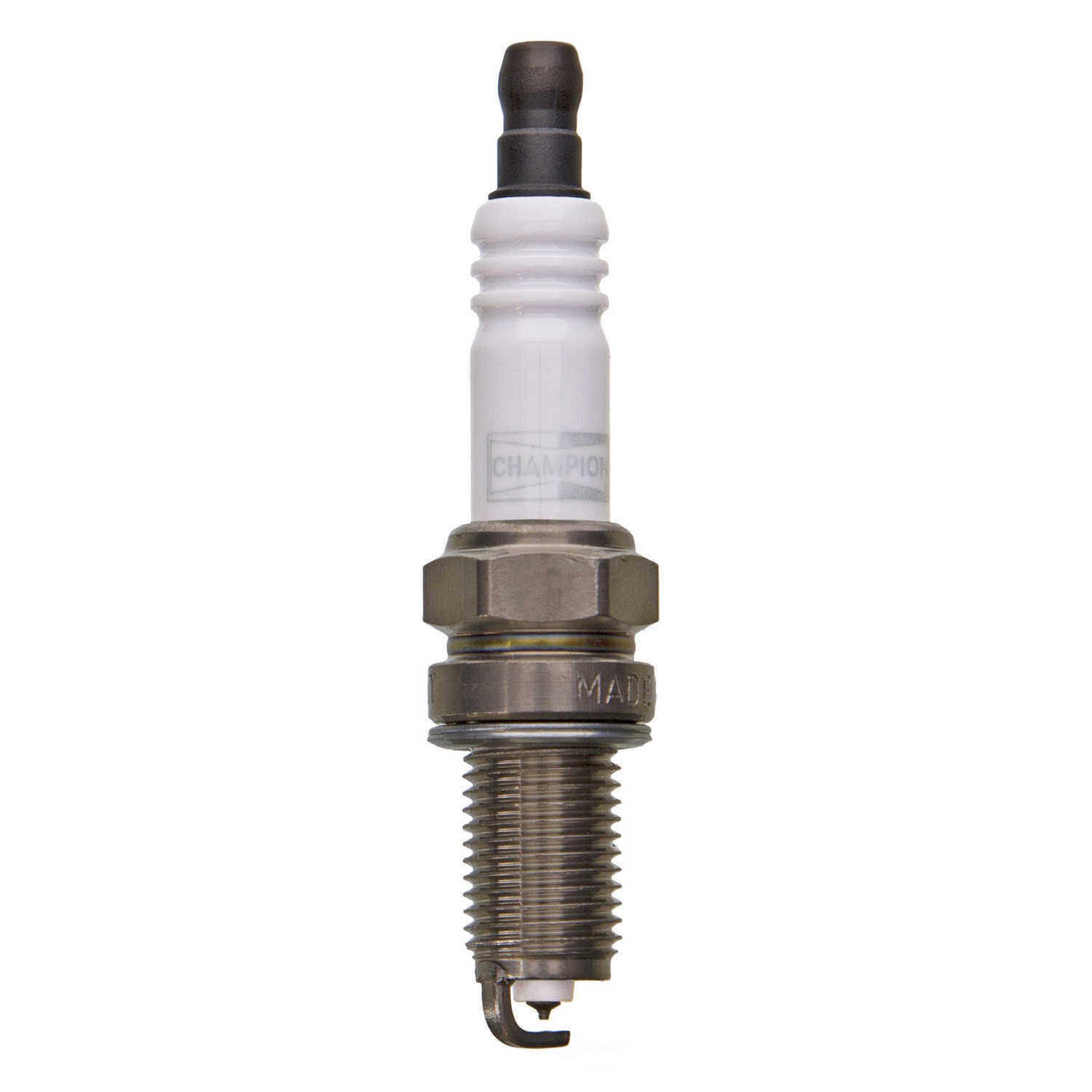

Spark Plug - Champion Spark Plugs - Double Platinum Power Spark Plug RA2PYPB Carton of 4 (Part Number: 7695)
- CTO: FR
- Emission Code: 4
- Harmonized Tariff Code (Schedule B): 8511100000
- Harmonized Tariff Code (HTS): 8511100000
- Life Cycle Status Code: 2
- Life Cycle Status Description: Available to Order
- SDR Required Flag: N
- PRC: NEW
- Taxable: Y
- APS: Dodge/Fiat 1.4 liter turbo
- Application Summary: Dodge/Fiat 1.4 liter turbo
- Extended Product Description: Champion Double Platinum Power 7695 Spark Plug RA2PYPB Carton of 4
- Product Description - Invoice: Double Platinum Power Spark Plug
- Marketing Description: Champion(R) Double Platinum PowerTM spark plugs deliver more powerful performance. Featuring exclusive Heat-ActiveTM alloy, platinum fine wire center electrode and platinum pad ground electrode provide maximum life and sharper spark focus.
- Short Product Description: Spark Plug
- Center Electrode Design: Fine Wire
- Center Electrode Tip Material: Platinum
- Classification: Champion Double Platinum Power
- Electrical Terminal Type: Non-Removable Nut
- Gap Style: J Gap
- Ground Electrode Core Material: Platinum
- Ground Electrode Material: Platinum Pad Surface
- Ground Electrode Quantity: 1
- Ground Electrode Tip Design: J Gap
- Ground Electrode Tip Material: Platinum
- Hex Size: 0.625 IN
- Hex Size: 15.88 MM
- Hex Type: Hex
- Indexed: No
- Insulator Height: 0.059 IN
- Insulator Projection (Inch): 0.059 IN
- Manufacturer Heat Range: 2
- Plug Type: RA2PYPB
- Pre-Gap Size: 0.032 IN
- Pre-Gap Size: 0.8 MM
- Reach: 0.75 IN
- Resistor Type: Yes
- Seat Type: Flat
- Skirt: No
- Thread Diameter: 0.472 IN
- Thread Diameter: 12 MM
- Washer Included: Yes
- Washer Type: Crush
- Manufacturer:
- Champion Spark Plugs
- Part Number:
- 7695
- Manufacturer Part Number:
- 7695
- Description:
- Spark Plug
- Long Description:
- Double Platinum Power Spark Plug RA2PYPB Carton of 4
- Part Type:
- Spark Plug
- Category:
- Ignition
- Subcategory:
- Secondary Ignition
- Sales Rank:
Product Details
- Condition:
- New
- Product Fit:
- Direct Fit
- Weight:
- 0.09 lbs.
- Height:
- 0.83"
- Width:
- 0.93"
- Length:
- 0.93"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 4
- Minimum Order Qty:
- 1
- Item GTIN:
- 037551014729
Technical Details
- CTO
- FR
- Emission Code
- 4
- Harmonized Tariff Code (Schedule B)
- 8511100000
- Harmonized Tariff Code (HTS)
- 8511100000
- Life Cycle Status Code
- 2
- Life Cycle Status Description
- Available to Order
- SDR Required Flag
- N
- PRC
- NEW
- Taxable
- Y
- APS
- Dodge/Fiat 1.4 liter turbo
- Application Summary
- Dodge/Fiat 1.4 liter turbo
- Extended Product Description
- Champion Double Platinum Power 7695 Spark Plug RA2PYPB Carton of 4
- Product Description - Invoice
- Double Platinum Power Spark Plug
- Marketing Description
- Champion(R) Double Platinum PowerTM spark plugs deliver more powerful performance. Featuring exclusive Heat-ActiveTM alloy, platinum fine wire center electrode and platinum pad ground electrode provide maximum life and sharper spark focus.
- Short Product Description
- Spark Plug
- Center Electrode Design
- Fine Wire
- Center Electrode Tip Material
- Platinum
- Classification
- Champion Double Platinum Power
- Electrical Terminal Type
- Non-Removable Nut
- Gap Style
- J Gap
- Ground Electrode Core Material
- Platinum
- Ground Electrode Material
- Platinum Pad Surface
- Ground Electrode Quantity
- 1
- Ground Electrode Tip Design
- J Gap
- Ground Electrode Tip Material
- Platinum
- Hex Size
- 0.625 IN
- Hex Size
- 15.88 MM
- Hex Type
- Hex
- Indexed
- No
- Insulator Height
- 0.059 IN
- Insulator Projection (Inch)
- 0.059 IN
- Manufacturer Heat Range
- 2
- Plug Type
- RA2PYPB
- Pre-Gap Size
- 0.032 IN
- Pre-Gap Size
- 0.8 MM
- Reach
- 0.75 IN
- Resistor Type
- Yes
- Seat Type
- Flat
- Skirt
- No
- Thread Diameter
- 0.472 IN
- Thread Diameter
- 12 MM
- Washer Included
- Yes
- Washer Type
- Crush
Specifications
The CHAMPION SPARK PLUGS Spark Plug contains no remanufactured components, and is designed to operate in either city or highway driving.
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2020 | Fiat | 124 Spider | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2020 | Fiat | 124 Spider | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2020 | Fiat | 500L | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2020 | Fiat | 500X | 1.3L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2019 | Fiat | 124 Spider | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2019 | Fiat | 124 Spider | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2019 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2019 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2019 | Fiat | 500L | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2019 | Fiat | 500X | 1.3L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2018 | Fiat | 124 Spider | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2018 | Fiat | 124 Spider | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2018 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2018 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2018 | Fiat | 500L | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2018 | Fiat | 500X | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2018 | Jeep | Renegade | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2017 | Fiat | 124 Spider | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2017 | Fiat | 124 Spider | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2017 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2017 | Fiat | 500L | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2017 | Fiat | 500X | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2017 | Jeep | Renegade | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2016 | Dodge | Dart | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2016 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2016 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2016 | Fiat | 500L | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2016 | Fiat | 500X | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2016 | Jeep | Renegade | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2015 | Dodge | Dart | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2015 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2015 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2015 | Fiat | 500L | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2015 | Jeep | Renegade | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2014 | Dodge | Dart | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2014 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2014 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2014 | Fiat | 500L | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2013 | Dodge | Dart | 1.4L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 2013 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2013 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2012 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2012 | Fiat | 500 | 1.4L | [Double Platinum Power Spark Plug] Turbo; Quantity needed per vehicle: 4 |
| 2010 | Ferrari | 612 Scaglietti | 5.7L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 12 |
| 2009 | Ferrari | 612 Scaglietti | 5.7L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 12 |
| 2008 | Ferrari | 612 Scaglietti | 5.7L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 12 |
| 2007 | Ferrari | 612 Scaglietti | 5.7L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 12 |
| 2006 | Ferrari | 612 Scaglietti | 5.7L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 12 |
| 2005 | Ferrari | 612 Scaglietti | 5.7L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 12 |
| 2005 | Ferrari | Superamerica | 5.7L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 12 |
| 2001 | Lamborghini | Diablo | 6.0L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 12 |
| 2000 | Lamborghini | Diablo | 6.0L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 12 |
| 1987 | Ferrari | GTO | 2.9L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 8 |
| 1986 | Ferrari | GTO | 2.9L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 8 |
| 1985 | Ferrari | GTO | 2.9L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 8 |
| 1984 | Ferrari | GTO | 2.9L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 8 |
| 1974 | Lancia | Fulvia | 1.6L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 1973 | Lancia | Fulvia | 1.6L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 1972 | Lancia | Fulvia | 1.6L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 1971 | Lancia | Fulvia | 1.6L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 1970 | Lancia | Fulvia | 1.6L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
| 1969 | Lancia | Fulvia | 1.6L | [Double Platinum Power Spark Plug] Quantity needed per vehicle: 4 |
