To make sure this part does fit your vehicle Check The Fit

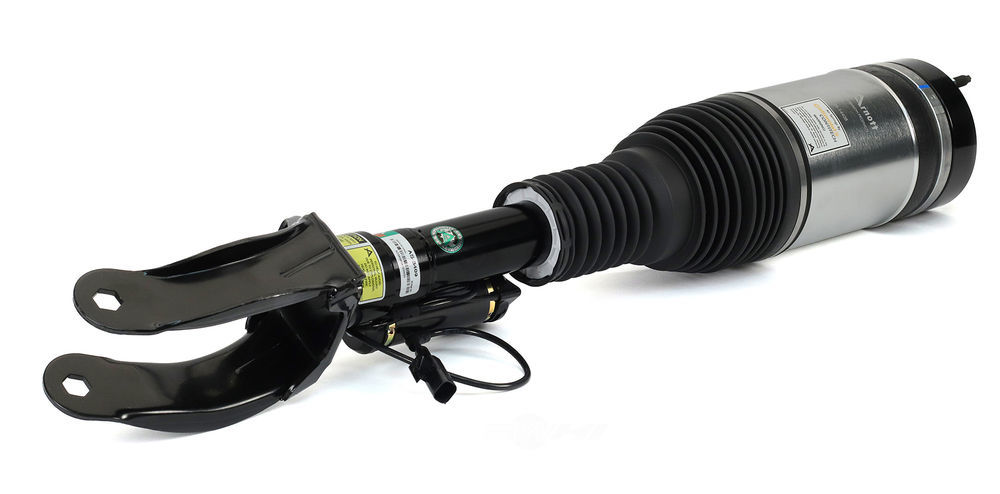

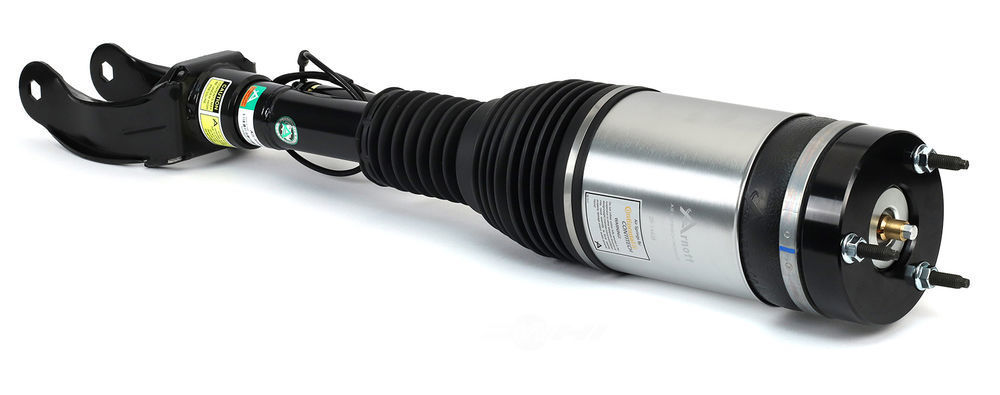

Air Suspension Strut - Arnott Air Suspension - New Front Left Air Strut (Part Number: AS-3409)
- Adjustable: No
- Adjustable Damping: No
- Air Adjustable: Yes
- Air Bladder: Yes
- Air Bladder Material: Yes
- Air Ride Suspension: Yes
- Bearing Plate Included: Yes
- Body End Measuring Point: Center Eye
- Boot Color: Black
- Boot/dust Shield Included: No
- California Proposition 65: N/A
- Coil Over Springs Included: N/A
- Compressed Length: 452.5 MM

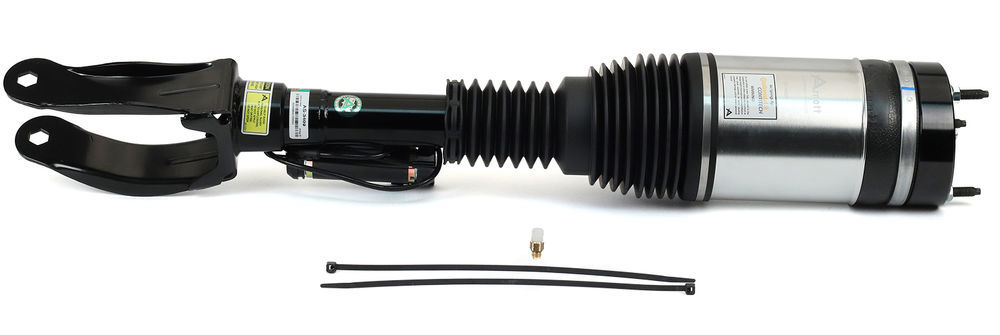

- Contents: Air Shock Assembly Air Fitting
- Dust Shield Material: N/A
- Extended Length: 584.7 MM
- Heavy Duty Crimping Rings: Yes
- Internal Construction Type: Twin-tube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Clevis
- Mounting Hardware Included: Yes
- Progressive Spring Rate: Yes
- Protective Aluminum Can: Yes
- Shock Absorber Rod End Measuring Point: Shoulder of Stud
- Shock Spring Assisted: Yes
- Shock/strut Design: Twin-tube
- Spring Isolators Included: Yes
- Spring Rate Type: Progressive
- Spring Seat Included: Yes
- Springs Included: N/A
- Travel Length: 132.19 MM
- Upper Mount Type: Stud
- Upper Mounting Isolator Included: Yes
- AAIA Part Type Description: Air Suspension Strut
- Marketing Description: AS-3409 is a new, Arnott engineered, aftermarket air suspension strut for the front left-hand side of the 2013-2018 Mercedes-Benz GL/GLS (X166 chassis) and the 2012-2018 ML/GLE (W166) with Airmatic and ADS. This new assembly features a model specific shock absorber and air spring, designed to improve ride comfort and handling. The Arnott strut is built with Tier 1 components including a premium multi-layer cross-corded Continental ContiTech air sleeve protected by an aluminum can and dust cover. This new air strut is designed and assembled in the USA with a formed steel top mount, O-rings, polyurethane bump stop, heavy-duty crimping rings, new airline fitting and check valve.
- Short Product Description: Air Suspension Strut
- CTO: US
- Emission Code: 1
- Harmonized Tariff Code (Schedule B): 8708800050
- Harmonized Tariff Code (HTS): 8708801600
- Life Cycle Status Code: 2
- SDR Required Flag: N
- Maximum Cases per Pallet Layer: 7
- Pallet Layer Maximum: 6
- PRC: NEW
- Taxable: Y
- Warranty Special: 2 Year
- Warranty Special UOM: TX
- Manufacturer:
- Arnott Air Suspension
- Part Number:
- AS-3409
- Manufacturer Part Number:
- AS-3409
- Description:
- Air Suspension Strut
- Long Description:
- New Front Left Air Strut
- Part Type:
- Air Suspension Strut
- Category:
- Suspension
- Subcategory:
- Shocks And Struts
- Sales Rank:
Product Details
- Condition:
- New
- Product Fit:
- Direct Fit
- Weight:
- 127.074 lbs.
- Height:
- 7.5"
- Width:
- 8.5"
- Length:
- 8.5"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Qty Per Application:
- 1
- Minimum Order Qty:
- 1
- Item GTIN:
- 815710019767
Technical Details
- Adjustable
- No
- Adjustable Damping
- No
- Air Adjustable
- Yes
- Air Bladder
- Yes
- Air Bladder Material
- Yes
- Air Ride Suspension
- Yes
- Bearing Plate Included
- Yes
- Body End Measuring Point
- Center Eye
- Boot Color
- Black
- Boot/dust Shield Included
- No
- California Proposition 65
- N/A
- Coil Over Springs Included
- N/A
- Compressed Length
- 452.5 MM
- Contents
- Air Shock Assembly Air Fitting
- Dust Shield Material
- N/A
- Extended Length
- 584.7 MM
- Heavy Duty Crimping Rings
- Yes
- Internal Construction Type
- Twin-tube
- Internal Damper Type
- Hydraulic
- Lower Mount Type
- Clevis
- Mounting Hardware Included
- Yes
- Progressive Spring Rate
- Yes
- Protective Aluminum Can
- Yes
- Shock Absorber Rod End Measuring Point
- Shoulder of Stud
- Shock Spring Assisted
- Yes
- Shock/strut Design
- Twin-tube
- Spring Isolators Included
- Yes
- Spring Rate Type
- Progressive
- Spring Seat Included
- Yes
- Springs Included
- N/A
- Travel Length
- 132.19 MM
- Upper Mount Type
- Stud
- Upper Mounting Isolator Included
- Yes
- AAIA Part Type Description
- Air Suspension Strut
- Marketing Description
- AS-3409 is a new, Arnott engineered, aftermarket air suspension strut for the front left-hand side of the 2013-2018 Mercedes-Benz GL/GLS (X166 chassis) and the 2012-2018 ML/GLE (W166) with Airmatic and ADS. This new assembly features a model specific shock absorber and air spring, designed to improve ride comfort and handling. The Arnott strut is built with Tier 1 components including a premium multi-layer cross-corded Continental ContiTech air sleeve protected by an aluminum can and dust cover. This new air strut is designed and assembled in the USA with a formed steel top mount, O-rings, polyurethane bump stop, heavy-duty crimping rings, new airline fitting and check valve.
- Short Product Description
- Air Suspension Strut
- CTO
- US
- Emission Code
- 1
- Harmonized Tariff Code (Schedule B)
- 8708800050
- Harmonized Tariff Code (HTS)
- 8708801600
- Life Cycle Status Code
- 2
- SDR Required Flag
- N
- Maximum Cases per Pallet Layer
- 7
- Pallet Layer Maximum
- 6
- PRC
- NEW
- Taxable
- Y
- Warranty Special
- 2 Year
- Warranty Special UOM
- TX
Specifications
The ARNOTT AIR SUSPENSION Air Suspension Strut contains no remanufactured components, and is designed to operate in either city or highway driving.
| Year | Make | Model | Engine | Notes |
|---|---|---|---|---|
| 2019 | Mercedes-Benz | GLE350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2019 | Mercedes-Benz | GLE400 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2019 | Mercedes-Benz | GLE500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2019 | Mercedes-Benz | GLE500e | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2018 | Mercedes-Benz | GLE350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2018 | Mercedes-Benz | GLE350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2018 | Mercedes-Benz | GLE400 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2018 | Mercedes-Benz | GLE500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2018 | Mercedes-Benz | GLE500e | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2018 | Mercedes-Benz | GLE550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2018 | Mercedes-Benz | GLE550e | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2017 | Mercedes-Benz | GLE300d | 2.1L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2017 | Mercedes-Benz | GLE350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2017 | Mercedes-Benz | GLE350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2017 | Mercedes-Benz | GLE400 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2017 | Mercedes-Benz | GLE400 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2017 | Mercedes-Benz | GLE500 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2017 | Mercedes-Benz | GLE550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2017 | Mercedes-Benz | GLE550e | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GL350 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GL450 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GL550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GLE300d | 2.1L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GLE350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GLE350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GLE350d | 3.0L | [NEW] Front Left; 4 Door; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GLE400 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GLE400 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GLE500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GLE550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2016 | Mercedes-Benz | GLE550e | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | GL350 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | GL450 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | GL500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | GL550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | ML250 | 2.1L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | ML350 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | ML350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | ML350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | ML400 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | ML500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2015 | Mercedes-Benz | ML550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2014 | Mercedes-Benz | GL350 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2014 | Mercedes-Benz | GL450 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2014 | Mercedes-Benz | GL500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2014 | Mercedes-Benz | GL550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2014 | Mercedes-Benz | ML350 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2014 | Mercedes-Benz | ML350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2014 | Mercedes-Benz | ML350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2014 | Mercedes-Benz | ML500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2014 | Mercedes-Benz | ML550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2013 | Mercedes-Benz | GL350 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2013 | Mercedes-Benz | GL450 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2013 | Mercedes-Benz | GL500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2013 | Mercedes-Benz | GL550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2013 | Mercedes-Benz | ML350 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2013 | Mercedes-Benz | ML350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2013 | Mercedes-Benz | ML350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2013 | Mercedes-Benz | ML500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2013 | Mercedes-Benz | ML550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2012 | Mercedes-Benz | ML350 | 3.0L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2012 | Mercedes-Benz | ML350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2012 | Mercedes-Benz | ML350 | 3.5L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2012 | Mercedes-Benz | ML350 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2012 | Mercedes-Benz | ML500 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
| 2012 | Mercedes-Benz | ML550 | 4.7L | [NEW] Front Left; Quantity needed per vehicle: 1 |
