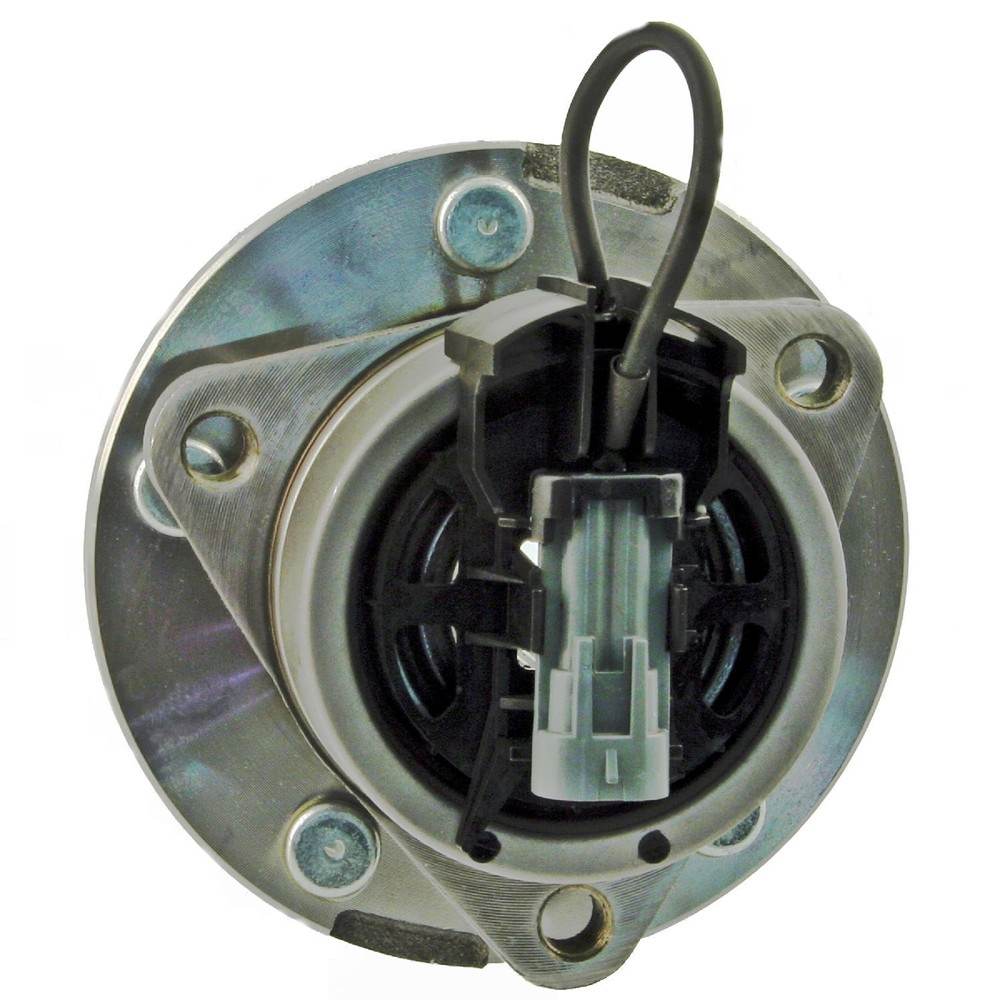

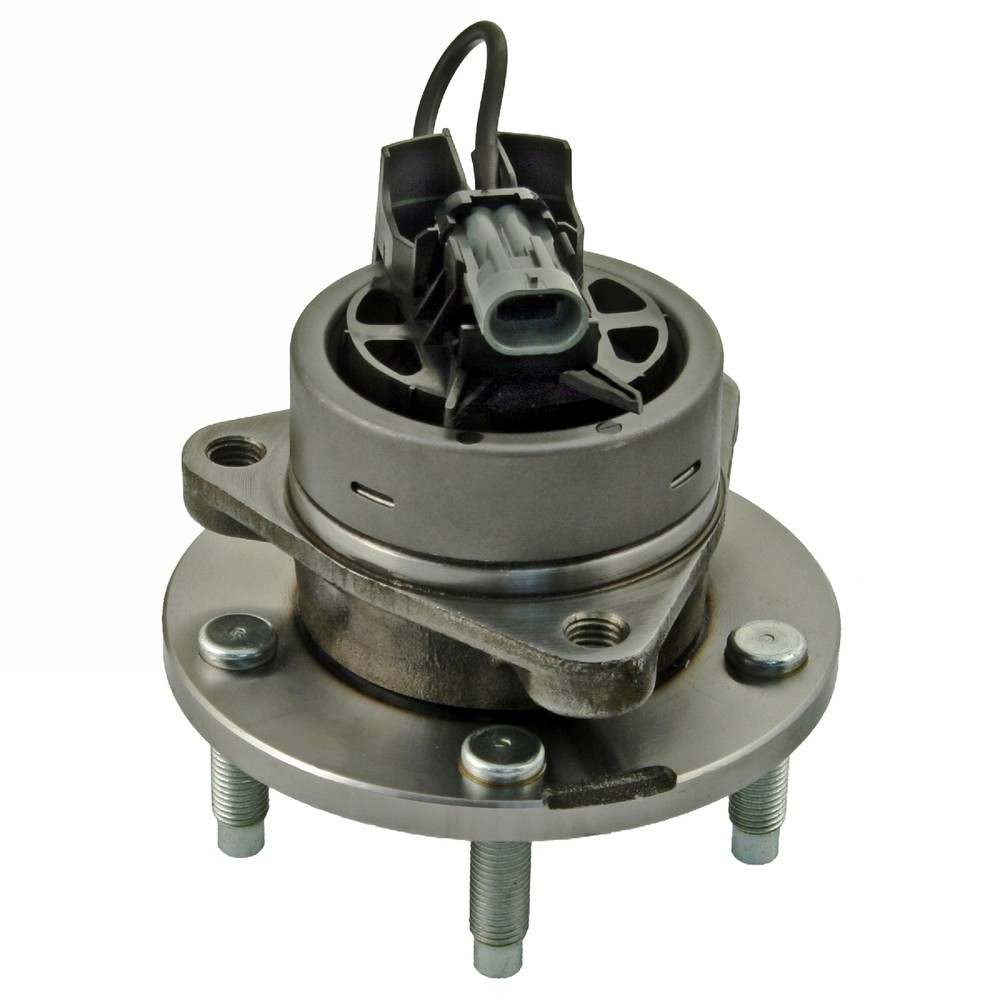

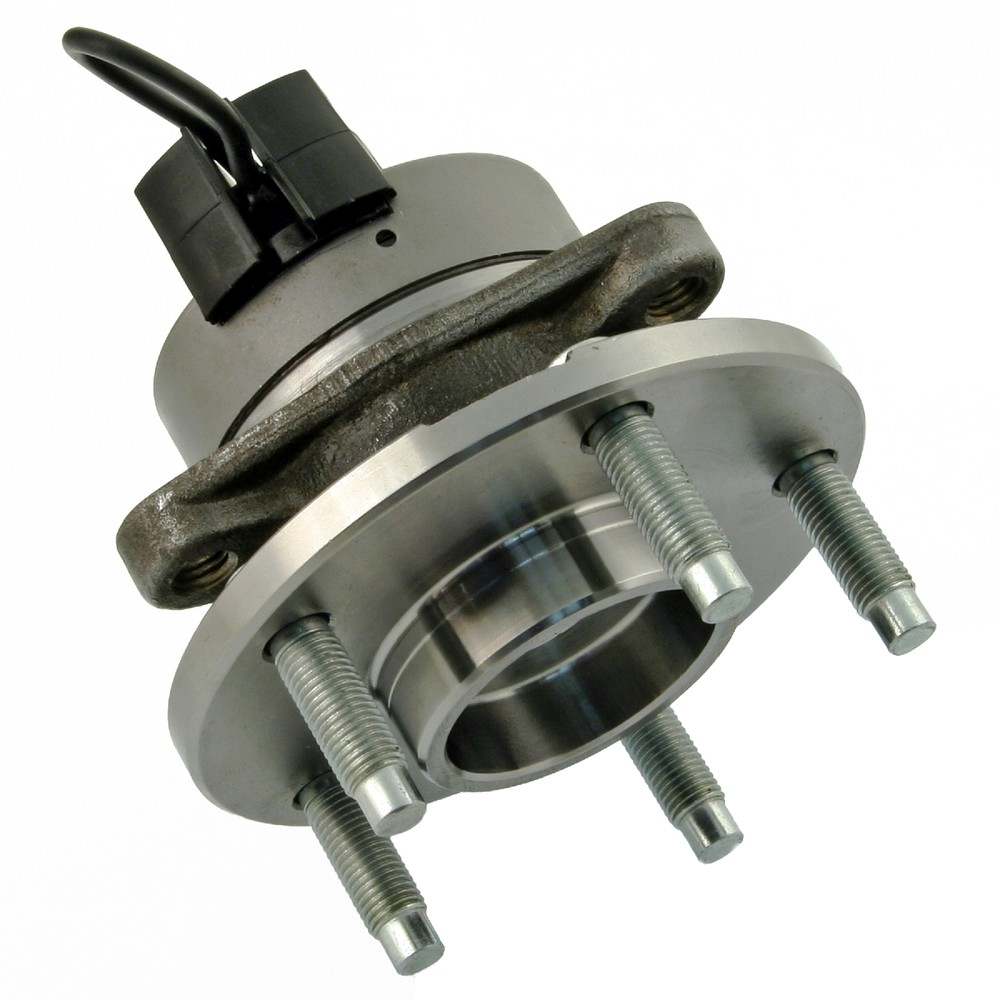

Wheel Bearing And Hub Assembly - Acdelco Silver/advantage - Front Wheel Hub and Bearing Assembly (Part Number: 513206)
- Application Summary: ChevroletPontiacSaturn
- Key Search Words: wheel-baering-baeringwhel-bearinghubbearing-hubbearing-hub-assemblywheell-bearingabs-sensoranti-lock-brake-sensorhubabs-speed-sensorspeed-sensorabs-sensor
- AAIA Part Type Description: Wheel Bearing and Hub Assembly
- Label Description: Front Wheel Hub and Bearing Assembly with Wheel Speed Sensor
- Extended Product Description: Front Wheel Hub and Bearing Assembly with Wheel Speed Sensor
- CTO: US
- Harmonized Tariff Code (HTS): 8708995800
- Life Cycle Status Code: 4
- Life Cycle Status Description: Announced
- Maximum Cases per Pallet Layer: 42
- Pallet Layer Maximum: 5
- Warranty Special: Limited Lifetime Warranty (Parts Only). Please see ACDelco.com for more details.
- Warranty Special UOM: TX
- Brake Pilot Diameter: 65.4 MM
- Brake Pilot Diameter: 2.575 IN
- Wheel Stud Size: 0.472 IN
- Wheel Stud Size: 12 MM
- Connector Terminal Quantity: 2
- Meets or Exceeds Original Equipment Manufacture Specifications: Yes
- Flange Shape: Triangular
- Flange Offset: 1.535 IN
- Flange Offset: 39 MM
- Length: 7.3 IN
- Wheel Pilot Diameter: 65 MM
- Wheel Pilot Diameter: 2.5591 IN
- Flange Bolt Hole Diameter: 0.472 IN
- Flange Bolt Hole Diameter: 12 MM
- Flange Bolts Included: No
- Connector Gender: Female
- Terminal Gender: Male
- Spline Quantity: 33
- Connector Quantity: 1
- Anti Lock Braking System: Yes
- Width: 6.5 IN
- Programming Required: No
- Bolt Circle Diameter (mm): 110 mm
- Bolt Circle Diameter: 4.3307 IN
- Weight: 7.37 LB
- Hub Pilot Diameter: 3.346 IN
- Hub Pilot Diameter: 85 MM
- Flange Diameter: 5.3937 IN
- Flange Diameter: 137 MM
- Wheel Stud Quantity: 5
- Height: 6.3 IN
- Flange Bolt Hole Quantity: 3
- Wheel Studs Included: Yes
- Anti Lock Braking System Type: Sensor
- Manufacturer:
- Acdelco Silver/advantage
- Part Number:
- 513206
- Manufacturer Part Number:
- 513206
- Description:
- Wheel Bearing And Hub Assembly
- Long Description:
- Front Wheel Hub and Bearing Assembly
- Part Type:
- Wheel Bearing And Hub Assembly
- Category:
- Driveline And Axles
- Subcategory:
- Hubs And Related Components
- Sales Rank:
Product Details
- Weight:
- 7.37 lbs.
- Height:
- 5.38"
- Width:
- 6.38"
- Length:
- 6.38"
- UOM:
- EA
- Quantity Sold:
- Sold individually
- Minimum Order Qty:
- 1
Technical Details
- Application Summary
- ChevroletPontiacSaturn
- Key Search Words
- wheel-baering-baeringwhel-bearinghubbearing-hubbearing-hub-assemblywheell-bearingabs-sensoranti-lock-brake-sensorhubabs-speed-sensorspeed-sensorabs-sensor
- AAIA Part Type Description
- Wheel Bearing and Hub Assembly
- Label Description
- Front Wheel Hub and Bearing Assembly with Wheel Speed Sensor
- Extended Product Description
- Front Wheel Hub and Bearing Assembly with Wheel Speed Sensor
- CTO
- US
- Harmonized Tariff Code (HTS)
- 8708995800
- Life Cycle Status Code
- 4
- Life Cycle Status Description
- Announced
- Maximum Cases per Pallet Layer
- 42
- Pallet Layer Maximum
- 5
- Warranty Special
- Limited Lifetime Warranty (Parts Only). Please see ACDelco.com for more details.
- Warranty Special UOM
- TX
- Brake Pilot Diameter
- 65.4 MM
- Brake Pilot Diameter
- 2.575 IN
- Wheel Stud Size
- 0.472 IN
- Wheel Stud Size
- 12 MM
- Connector Terminal Quantity
- 2
- Meets or Exceeds Original Equipment Manufacture Specifications
- Yes
- Flange Shape
- Triangular
- Flange Offset
- 1.535 IN
- Flange Offset
- 39 MM
- Length
- 7.3 IN
- Wheel Pilot Diameter
- 65 MM
- Wheel Pilot Diameter
- 2.5591 IN
- Flange Bolt Hole Diameter
- 0.472 IN
- Flange Bolt Hole Diameter
- 12 MM
- Flange Bolts Included
- No
- Connector Gender
- Female
- Terminal Gender
- Male
- Spline Quantity
- 33
- Connector Quantity
- 1
- Anti Lock Braking System
- Yes
- Width
- 6.5 IN
- Programming Required
- No
- Bolt Circle Diameter (mm)
- 110 mm
- Bolt Circle Diameter
- 4.3307 IN
- Weight
- 7.37 LB
- Hub Pilot Diameter
- 3.346 IN
- Hub Pilot Diameter
- 85 MM
- Flange Diameter
- 5.3937 IN
- Flange Diameter
- 137 MM
- Wheel Stud Quantity
- 5
- Height
- 6.3 IN
- Flange Bolt Hole Quantity
- 3
- Wheel Studs Included
- Yes
- Anti Lock Braking System Type
- Sensor
Specifications
The ACDELCO SILVER/ADVANTAGE Wheel Bearing And Hub Assembly contains no remanufactured components, and is designed to operate in either city or highway driving.
